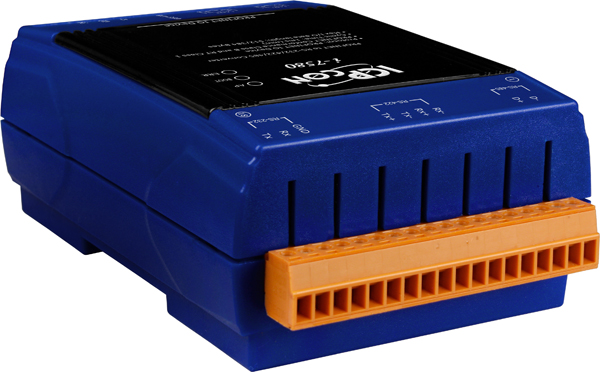

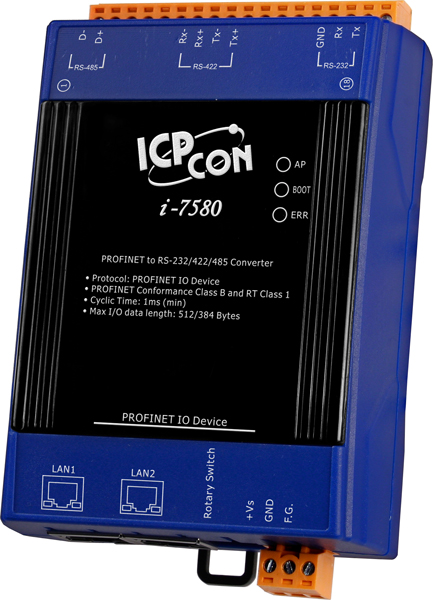

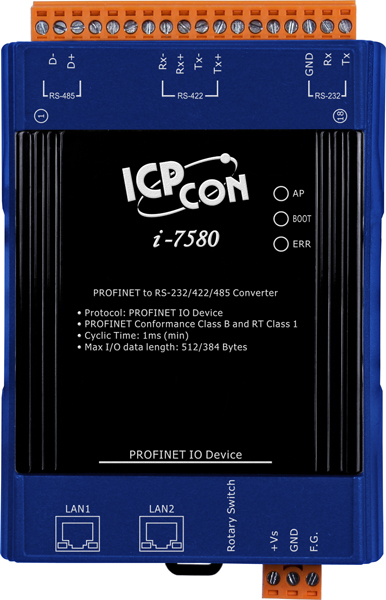

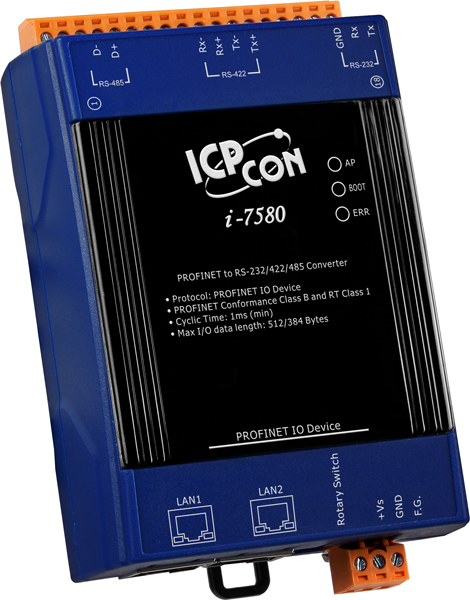

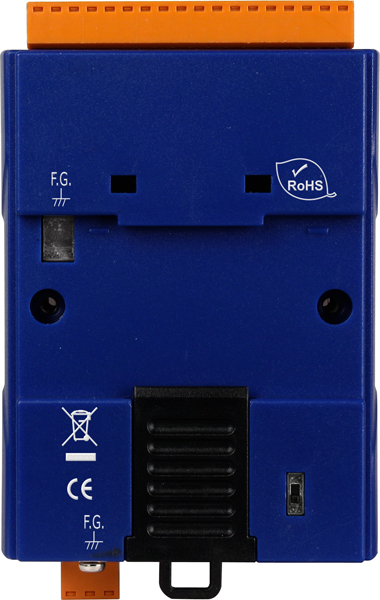

The I-7580 is a PROFINET IO device with RT functionality that supports RS-232, RS-422 and RS-485 serial interfaces. Users can choose one of these serial communication interfaces to apply. It is easy to allow users to take almost serial device to a PROFINET network including serial remote I/O devices, sensors, actuators, HMI, barcode readers and RFID, etc.
Hardware |
|
CPU |
32-bit CPU Core |
RAM/Flash/EEPROM |
32 MB / 4 MB / 8 KB |
Watchdog |
CPU built-in |
ESD Protection |
4 kV class A |
| PROFINET Interface | |
Protocol |
PROFINET IO Device |
Conformance Class |
Class B |
| Service | RTC, RTA, CL-RPC, DCP, LLDP, I&M |
Cycle |
1 ms (min) |
Ethernet Interfance |
|
Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |

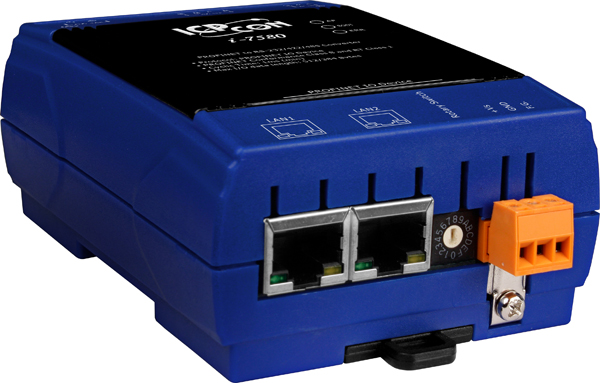

| Connector | RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch |
Service |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
UART Interface |
|
| COM | RS-232/RS-422/RS-485 (can't be used simultaneously) |
| COM Connector | 3-pin screwed terminal block (RxD, TxD, GND) 4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-) 2-pin screwed terminal block (DATA+, DATA-) |
| Baud Rate (bps) | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 |
Data bit |
7, 8 |
Stop bit |
1 |
Parity |
None, Even, Odd |
LED |
|
| Round LED |
AP LED, BOOT LED, ERR LED |
Power |
|
Power Supply |
Unregulated +10 ~ +30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
3.4 W |
Mechanical |
|
| Installation | DIN-Rail |
Dimension |
42 mm x 76 mm x 119 mm (W x L x H) |
Environment |
|
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature | -30°C~+80°C (-22°F~+176°F) |
| Humidity | 10 ~ 90% RH, non-condensing |
