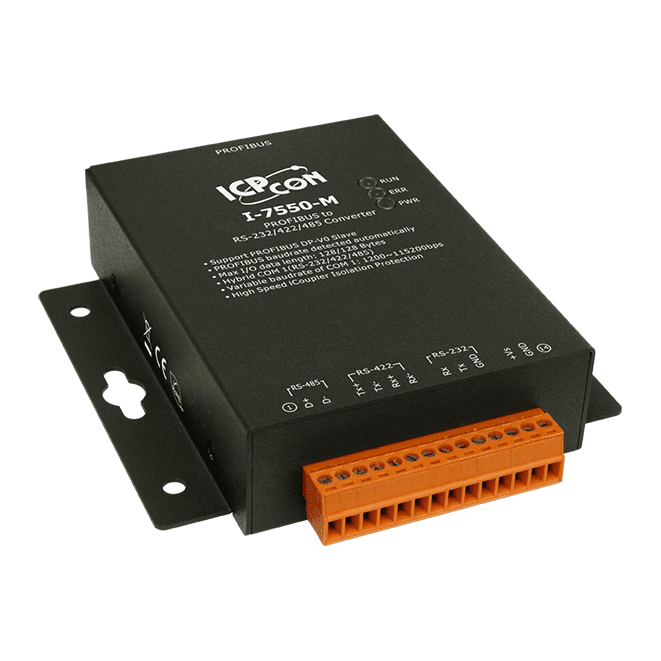

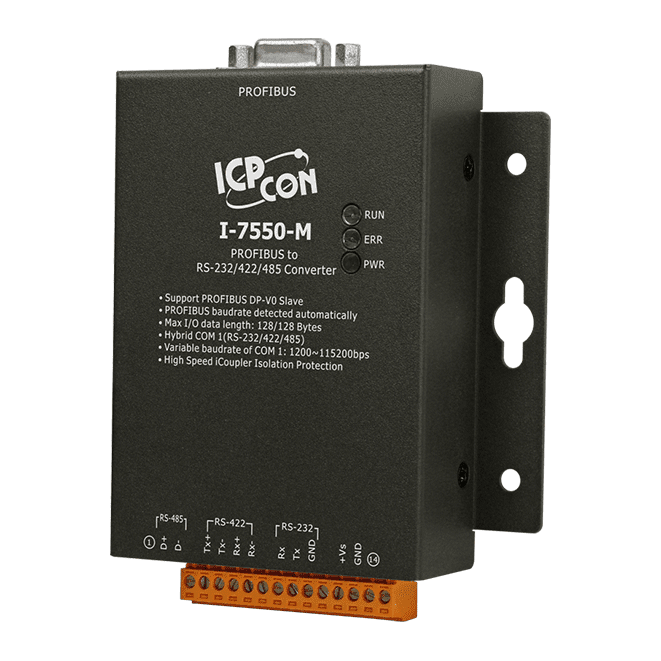

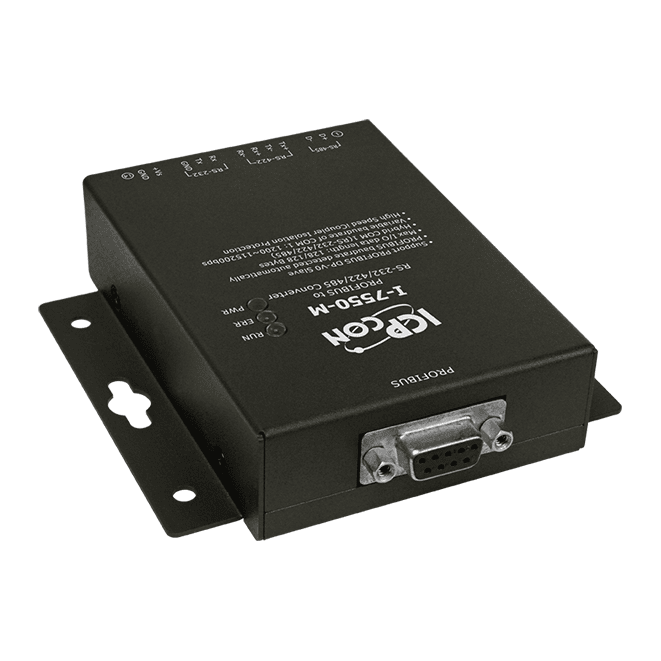

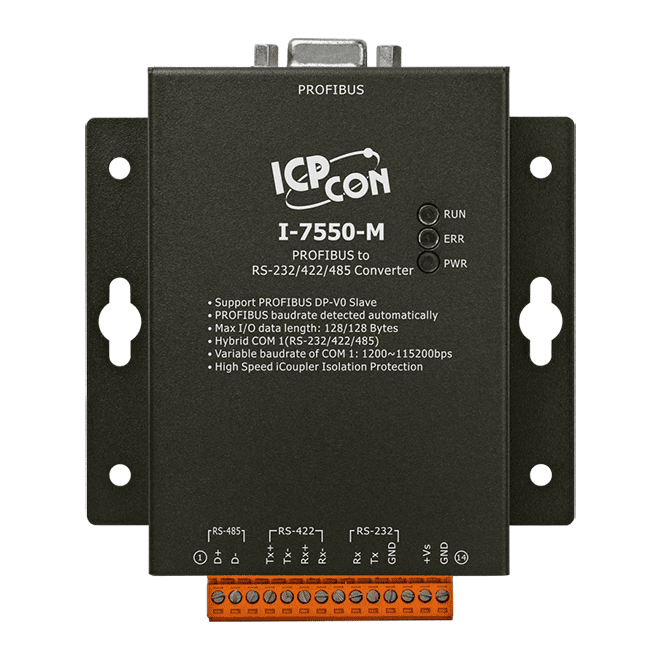

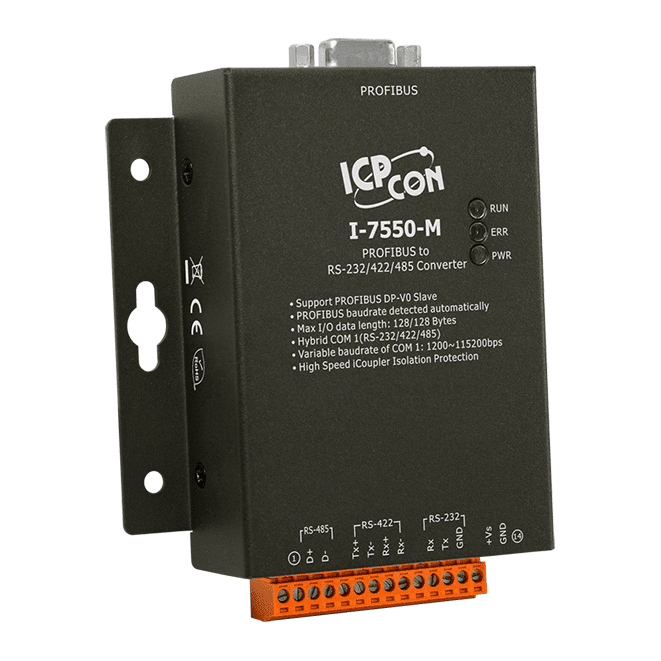

I-7550-M

$759.00
PROFIBUS to RS-232/422/485 Converter with metal case. Supports operating temperatures between -25 to 75°C.
Availability: | FASTEST DELIVERY : Saturday, Sep 26 | Enter ZIP below for shipping options
Get Shipping Options
-
+
Buy with one Click
Share On:
Categories: RS-232/422/485 Converters | PROFIBUS Converters and Gateways | PROFIBUS Converter
Review: Write your review
Resources:

Introduction

The I-7550 converter is specially designed for the slave device of PROFIBUS DP protocol. It offers RS-232, RS-422, and RS-485 three kinds of communication way. With the Hybrid COM 1 design, users can readily choose one type of com port to use. By using this module, users can put their RS-232/422/485 devices into PROFIBUS network very easily.



Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 128 Bytes
  • Max Output Data Length : 128 Bytes
  • Address Setting : 0~126 set by DIP switch
  • Hybrid COM 1 : RS-232/422/485 with “Self Tuner” inside
  • Supports COM 1 Data Format : 7/8 data bits, No/Odd/Even parity, 1 stop bit
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side



Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc.

Specifications

CPU Module
CPU80186, 80 MHz or compatible
EEPROM16 KB
Flash512 KB
SRAM512 KB
Watchdog TimerWatchdog IC
CPU built-in
LED Indicators
StatusPWR LED, RUN LED, ERR LED
COM Ports
PortsRS-232/RS-422/RS-485(cant be used simultaneously)
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-)
Baud Rate1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
ParityNone, Even, Odd
Data Bit7, 8
Stop Bit1
PROFIBUS
ControllerSiemens SPC3
TransceiverADI ADM2486
Baud Rate9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
ProtocolDP-V0
Power
Consumption2.5 W
Mechanical
CasingMetal
Dimensions (mm)96 x 33 x 119 (W x L x H)
InstallationDIN-Rail
Environment
Operating Temperature-25 ~ +75
Storage Temperature-30 ~ +85
Humidity5 ~ 95% RH, Non-condensing

Add a review

Your email address will not be published. Required fields are marked *

Overall ratings
Select Rating *
You must be signed in to review! Click here to sign in.
Related Products

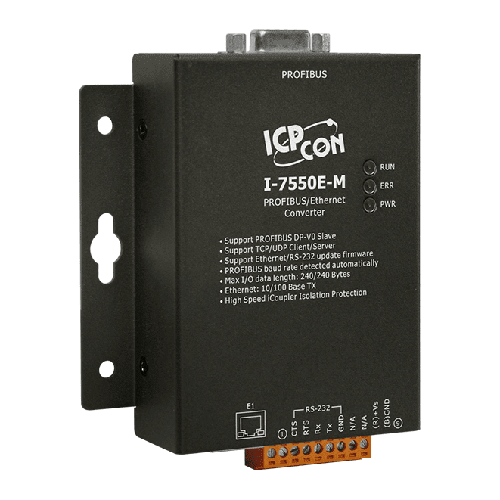

I-7550E-M
