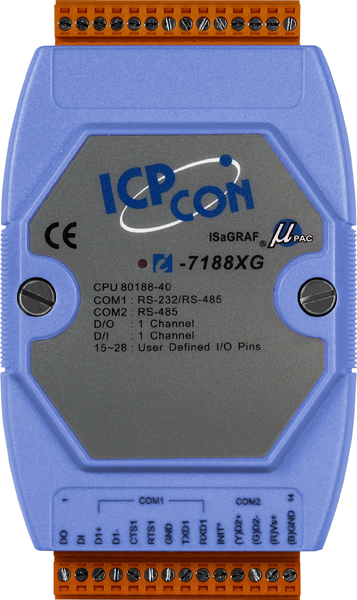

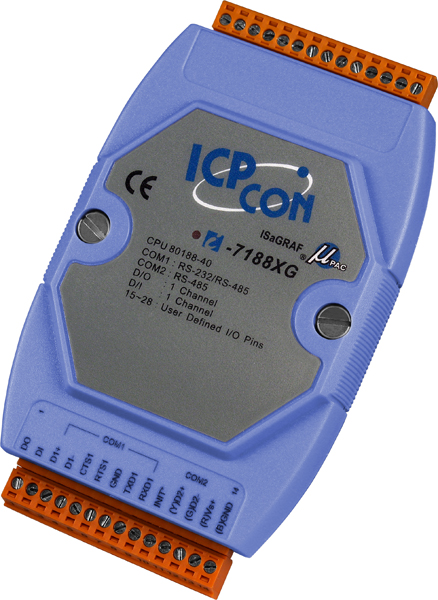

I-7188XG

$539.00
Embedded Controller, programmable in ISaGRAF IEC-1131 Development Suite with 40 Mhz CPU. Supports operating temperatures between -25 to 75°C.
Availability: IN STOCK | FASTEST DELIVERY : Friday, Sep 25 | Enter ZIP below for shipping options
Get Shipping Options
-
+
Buy with one Click
Share On:
Categories: PCI Memory Boards
Review: Write your review
Resources:

The I-7188XG is an embedded controller and powered by an 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. It provides one serial RS-232/RS-485 port(Jumper Selectable) and one RS-485 port. The I-7188XG also supports an optional battery back-up SRAM expansion board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes.



Creating a modbus Link with the I-7188XG
The I-7188XG controller can be a Modbus "Slave" and/or a Modbus "Master" controller depending on the application. As a Modbus slave, you can use COM1 (RS232/RS485) of the I-7188XG controller to link to PCs or other HMI products. As a Modbus master, you can use COM2 (RS485) to talk to other PLCs or devices which support Modbus protocol.




I/O Expansion Boards
The I-7188XG has an I/O expansion bus which can plug an expansion I/O board. Available I/O boards are as X107, X202, X203, X303, X304, X305, X503, X504, X505, X506, X507, X508, X509, X510 and more.


Linking the I-7000 & I-87xx module for remote I/Os
The I-7188XG controller can use its COM2 (RS485) port to link to ICP DAS's "I-7000" & “I-87xx” series ( Note1) of remote I/O modules. This configuration can be very useful in applications that require distributed remote I/O throughout the system.


Linking To An MMI Interface Device
The COM1 (RS-232/RS-485) port of the I-7188XG controller can be used to interface with additional Man Machine Interface (MMI) devices such as touch screen displays. ICP DAS provides a full line of touch screen displays, such as the "Touch" series screens. The models in the product line include the Touch 506, and the Touch 510 MMI products.




MMICON: ICP DAS's Man Machine Interface
The I-8417/8817/8437/8837 & I-7188EG/XG support the ICP DAS's MMICON to become their Man Machine Interface. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float. All control logic is written in ISaGRAF program.




Data log
data, date & time can be stored at X607 / X608, and then PC can load these data via RS232/RS485.
  • PWM : Pulse Width Modulation output
    Parallel D/O boards can do PWM output. Up to 8 channels for one controller. 500 Hz max. for Off=1ms & On=1ms. Available output square curve: Off = 1 to 32767 ms, On = 1 to 32767 ms.
  • Parallel D/I counters:
    Parallel D/I board at slot 0 can accept counter input up to 500Hz with minimum pulse width > 1ms. Up to 8 channel for one controller. Counter value: 32 bit.
  • Redundant Bus7000 : Redundant communication of remote I/O
    Two ISaGRAF controllers can link to remote I-7000 & I-87K I/O modules at the same time. Only one controller is active to control these remote I/Os. If one is dead, the other one will take over the control of remote I/Os.
  • SMS:Short Message Service
    The I-8417/8817/8437/8837, I-7188EG, I-7188XG & Wincon-8037/8337/8737 controller can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or control something from his own cellular phone to the ISaGRAF controller. Beside, the controller can also send information and alarms to user's cellular phone .

Specifications

Power requirements 10 to 30VDC (unregulated) , I-7188XG:2W, I-7188XGD:3W
Protection Built-in power protection & network protection circuit
temperature Operating: -25°C to +75°C
  Storage : -30°C to +85°C
Humidity 5 to 95% (non-condensed)
CPU 80188 40MHz, or compatible
Watchdog timer Yes
Real time clock Gives hour, minute, sec, date of week, date of month, month & year (1980 to 2079)
SRAM 512K bytes
FLASH Memory 512K bytes, Erase unit is 64K bytes, 100,000 erase/write cycles
NVSRAM 31 bytes, battery backup, data valid up to 10 years
EEPROM 2048 bytes, retention > 100 years. 1,000,000 erase/write cycles
Disply for I-7188EGD Five 7-Seg. Led on the front. lt can display message & value.
Expansion I/O bus One optional Xxxx series I/O board can be plugged inside the I-7188XG / 7188XGD
NET ID Set by software, 1 to 255
COM1 Can be used as RS232 or RS485, Speed: 115200 bps max.
RS232 TXD,RXD,RTS,CTS,GND
RS-485:D+, D-, self-tuner inside
Program download prot.
COM2 RS485: D+, D-, 115200 bps max. Self-tuner ASIC inside, Program download port.
ISaGRAF Version 3 IEC61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC
Pulse Width Modulation output All Xxxx series D/O boards support PWM output. 8 channels max. for one controller.
500Hz max. for Off=1 & On=1 ms
Output square curve: Off: 1 to 32767 ms, On: 1 to 32767 ms
Parallel D/I counter All Xxxx series D/I support D/I counter.
8 ch. max. for one controller. Counter value: 32 bit
500HZ max. Min. pulse width > 1ms
Remote D/I counter All remote I-7000 & I-87K D/I modules support counters. 100Hz max. value: 0 to 65535
Remote High speed counter Optional i-87082:100kHz max. , 32 bit
Modbus serial protocol COM1 default supports Modbus RTU slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & MMI panels.
Remote I/O One of COM2 (or COM3:RS485 if found) supports I-7000 I/O modules & (I-87K base + I-87K serial I/O boards) as remote I/O. Max. 64 I/O module for one controller
Modbus master protocol One of COM2 (or COM3 if found) supports Modbus master protocol to connect to other Modbus slave I/O devices
Fbus built in COM2 port to exchange data between ICP DAS's ISaGRAF controllers.
SMS:Short Message Servise One of (COM3:RS232 or COM4:RS232 if found) can link to a GSM modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user's cellular phone.
Optional GSM modems: M1206 or GM29 (GSM 900/1800)
User defined protocol User can write his own protocol applied at COM2 & (COM3 to COM8 if found) by serial communication function blocks.
MMICON / LCD One of (COM3:RS232 if fonnd) supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input a character, string, integer and float.
Redundant Bus7000 Two ISaGRAF controllers can link to remote I-7000 & I-87K I/O modules at the same time. Only one controller is active to control these remote I/Os. If one is dead, the other one will take over the control of remote I/Os.
Battery backup SRAM I-7188XG / 7188XGD can support up to 1024 retain variables with a X607 / X608 plug in the only expansion I/O slot.
Data can be stored in X607/X608, and then PC can load these data via COM1.
PC can also download pre-defined data to the X607/X608.
Optional: X607: 128kbytes, X608: 512kbytes
Mount: Din Rail Mount
