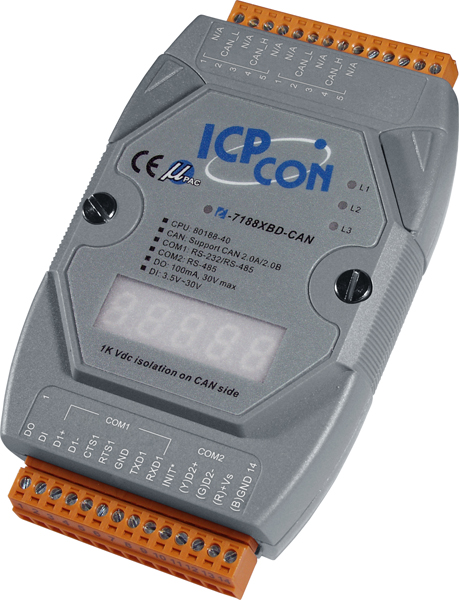

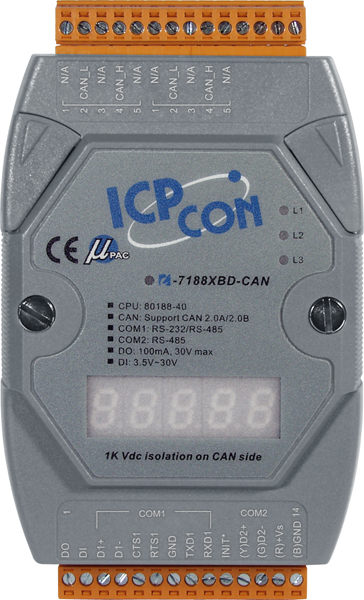

I-7188XBD-CAN

The I-7188XBD-CAN series PACs (Programmable Automation Controller) are powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port and RS-485 port. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector digital output channel and 1 digital input channel. It is useful for transfer the command from differential communication interface. Therefore, it can satisfy the applications with I/O demand. Therefore, the I-7188XBD-CAN series PACs are economic and convenient solution for diversification CAN application.

Application

• CAN bus communication application
• Industry automation
• Auto detecting CANopen slave devices

• IO monitor
• High speed data acquisition system
• Process monitor and control
• Factory automation

• Laboratory automation
• Communication switching

Features

• 2500Vrms photo-isolation protection.
• Compatible with CAN specification 2.0 parts A and B.
• Programmable transfer rate up to 1 Mbps.
• Jumper select 120Ω terminator resistor for CAN channel
• 64-bit hardware unique serial number inside
• COM driver support interrupt & 1K QUEUE input buffer
• COM port: COM1, COM2
• Built-in RTC, NVRAM, EEPROM
• One digital Input channel and one open collector output channel
• Built-in self-tuner ASIC controller on RS-485 port
• 7-segment LED display
• Built-in ICP DAS’s MiniOS7
• Program download port: COM1
