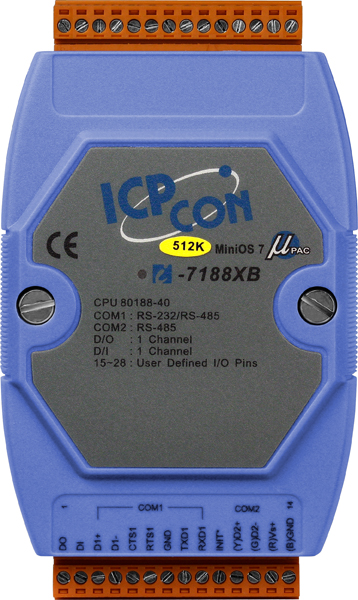

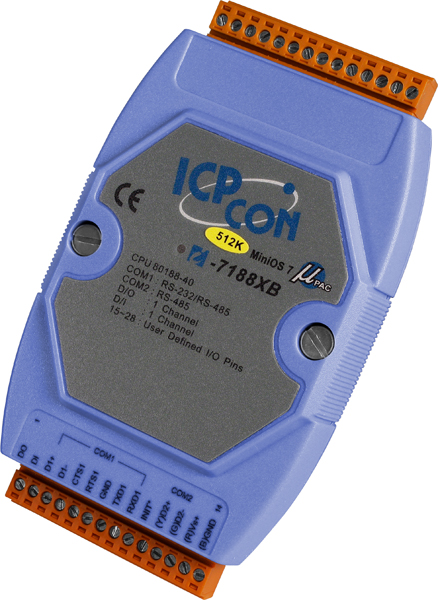

The I-7188XB-512 controller is designed for palm-size embedded systems that require high reliability for industrial applications and has the ability to withstand harsh environments. It is PC-compatible and can be used to replace PC or PLC devices. Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XB(D) can be used as a single versatile controller. The controllers can be integrated into an OEM product as a processor core component.
CPU
CPU
80188 (40MHz)
SRAM
512K Bytes (for I-7188XB/512)
Flash
512K Bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles.
EEPROM
2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1,000,000 erase/write cycles
NVRAM
31 Bytes (battery backup, data valid up to 10 year)
RTC (real time clock)
Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number
Yes
Build-in Watchdog Timer
Yes
Communication Interface
COM1
RS-232 or RS-485 (Default is RS-232); Program download port
RS-232 (TXD, RXD, RTS, CTS, GND)
RS-485 (D1+, D1-, self-tuner ASIC inside)
1 byte FIFO
COM2
RS-485 (D2+, D2-, self-tuner ASIC inside),1 byte FIFO
Communication speed
All ports
115.2K bps max
Digital Input/Output
Digital Input
Channels : 1
Contact: Dry
On voltage level: Connect to GND
Off voltage level: Open
Digital Output
Channels : 1
Output type : Open-collector
Output current : 100mA
Max load voltage : +30VDC
LED Display
5 Digits Seven Segment Display
Yes (for 7188XBD)
Red LED
Yes
I/O expansion bus
I-7188XB
Yes
I-7188XBD
Yes
Dimensions
I-7188XB
119mm x 72mm x 33mm
I-7188XBD
119mm x 72mm x 33mm
Operating Environment
Operating Temperature
-25°C ~ +75°C
Storage Temperature
-30°C ~ +80°C
Humidity
10% ~ 90% RH, non-condensing
Power
Protection
Power reverse polarity protection
Power requirement
10 to 30VDC
Power consumption
I-7188XB : 2.0W
I-7188XBD : 3.0W
