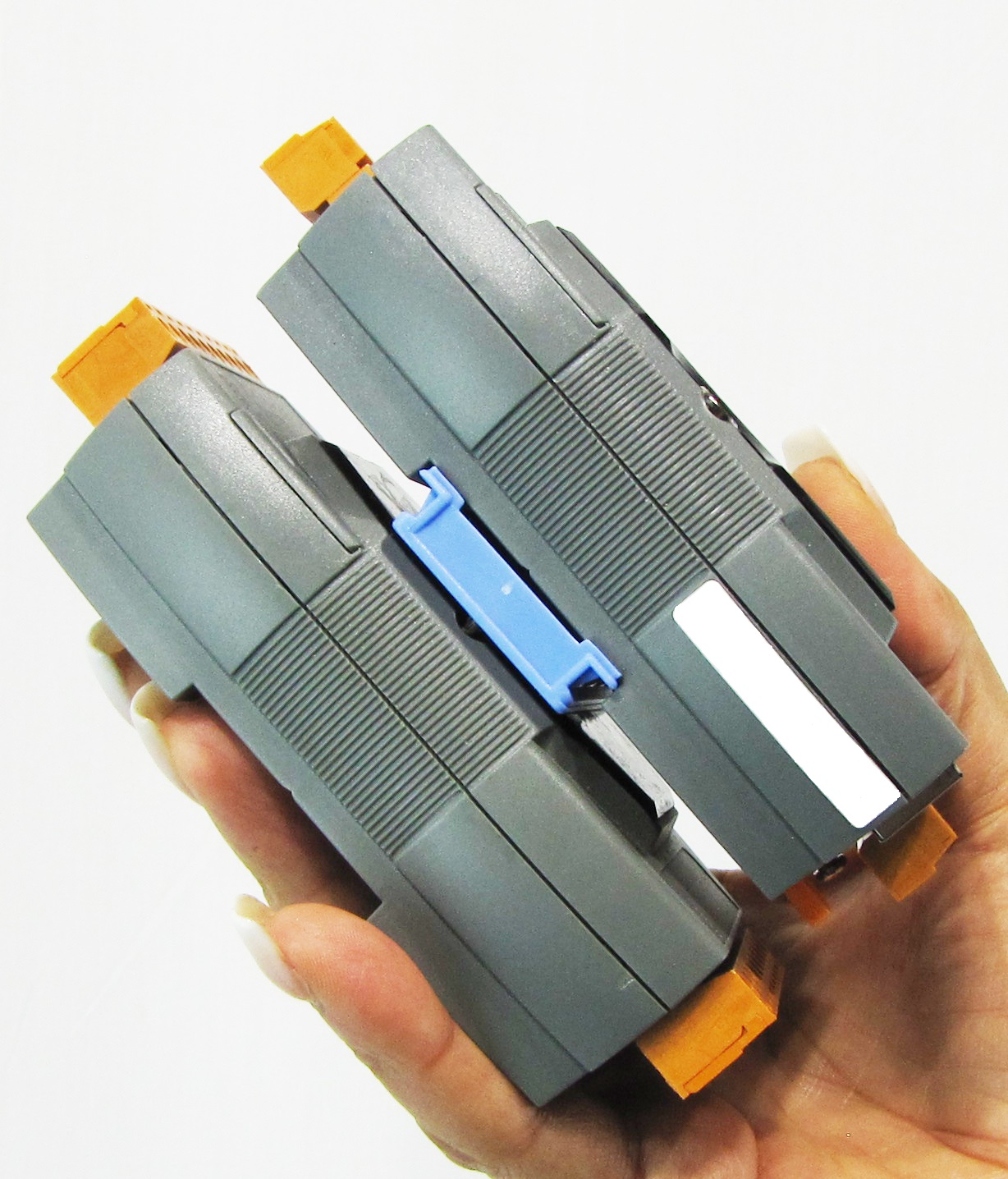

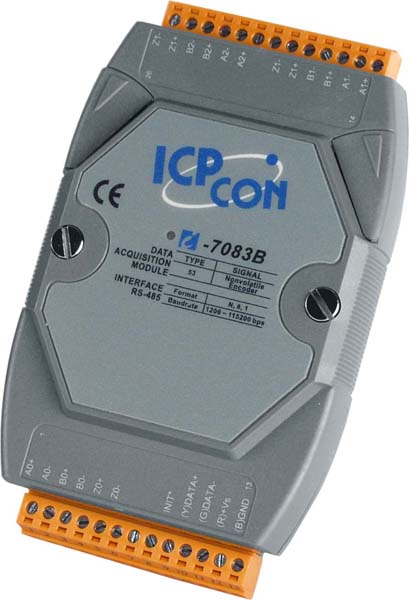

Main Product Image

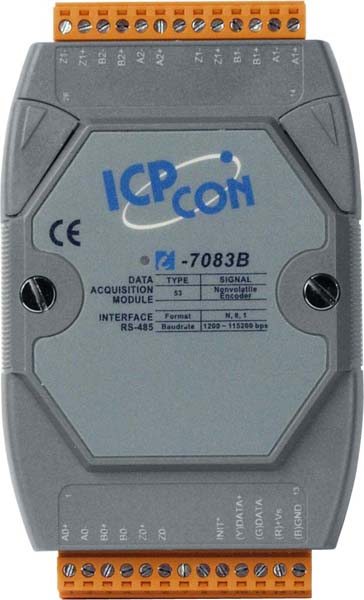

Main Product Image

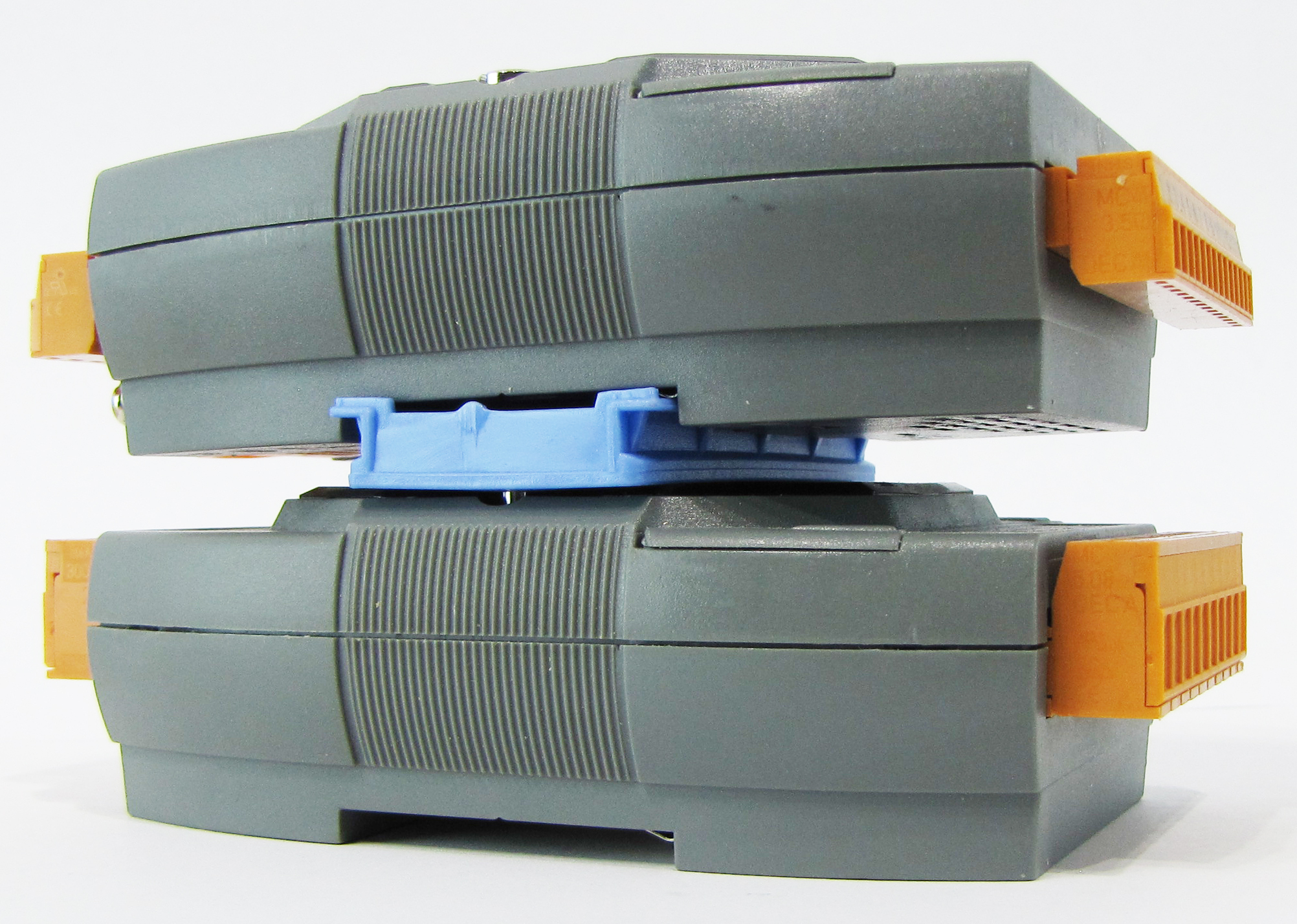

Main Product Image

I-7083B

$539.00
3-Axis, 32 bit Encoder Counter with Battery Backup communicable over RS-485. Supports operating temperatures between -25 to 75°C.
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review: Write your review
Resources:
  • User's ManualUser's Manual
  • HardwareHardware
  • SoftwareSoftware
  • Free EZ Data Logger SoftwareFree EZ Data Logger Software
  • CE CertificationCE Certification
  • FCC Certification FCC Certification

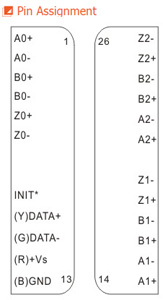

    • I-7083B PINI-7080B is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7080 is a Counter/Frequency Input Module with Battery Backup. It is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7080 High Speed Counter / Frequency Input module. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

    Specifications

    • Has Battery Backup
    • Counter Input
      • Channels: 3 Axis
      • Input Type: Isolated
      • Encode Mode:
        • Quadrant Counting Mode
        • CW/CCW Counting Mode
        • Pulse/Dir Counting Mode
      • Isolation Voltage:
        • Input Level: 5V
          • Logic High: 3.5V - 5V
          • Logic Low: 0V - 2V
        • Input 12V with External Resistor 1K Ohm
          • Logic High: 5V - 12V
        • Input 24V with External Resistor 2K Ohn
          • Logic High: 7V - 24V
          • Logic Low: 0V - 2V
        • Maximum Count: 32 bit
        • Maximum Counting Rate: 1 Mhz
    • Interface: RS-485
      • Format: N, 8, 1
      • Baud Rate: 1200 - 115200bps
    • LED Display:
      • 1 LED as Power / Communication Indicator
      • 5-digit readout (for I-7083D)
    • Power
      • Input Voltage Range: 10 - 30VDC
      • Power Consumption:
        • 1.5W max. for I-7083
        • 1.7W for max. I-7083D
    • Environment
      • Operating Temperature: -25°C to 75°C
      • Storage Temperature: -40°C to 85°C
      • Humidity: -5% to 95% (non-condensing)
