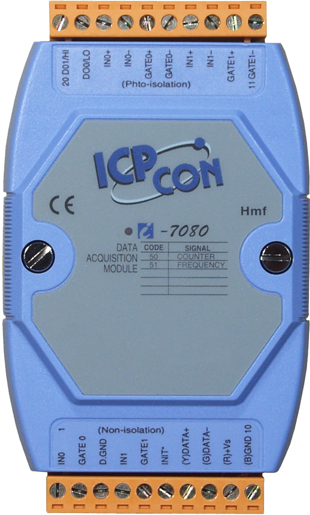

I-7080 is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7080 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7080 High Speed Counter / Frequency Input module. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Digital Input | |
|---|---|
| Programmable Threshold Voltage | +0.1 - +5 VDC |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 - +30 VDC |
| Load Current | 30 mA/channel |
| Counter/Frequency/Encoder Input | |
|---|---|
| Channels | 2 |
| Type | Counter, Frequency |
| Counter Mode | Up |
| Frequency Mode | Yes |
| Counter/Encoder Bits | 32-bit |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | Isolated: +3.5 - +30 VDC Non-isolated: +2.4 - +5 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Frequency Accuracy | 1 Hz or 10 Hz |
| Max. Speed | 100 KHz |
| Low Pass Filter | 2 μs to 65 ms |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 - 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 - +30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 - +75 °C |
| Storage Temperature | -40 - +85 °C |
| Humidity | 10 - 95% RH, Non-condensing |
