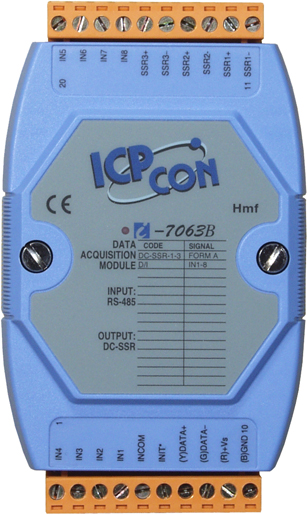

I-7063B

$329.00
Digital Input Relay Output Data Acquisition Module (DC SSR type) communicable over RS-485. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review: Write your review
Resources:

I-7063B is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7063B is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7063B Isolated digital input & DC-SSR relay output module. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. The communication interface is modbus protocol via RS-485. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.

Specifications

Digital Input

  • Channels: 8
  • Digital Input level:
    Isolated with common power
    Logic level 0: +1V max.
    Logic level 1: +4V to+ 30V
    Isolation voltage: 3750Vrms
    Input impedance: 3KO , 0.5W
  • 8 Digital input channel with counter function
  • Input Frequency : 100Hz
  • 16-bit counter : 0 - 65,535


SSR DC output

  • Channels: 3
  • form "A” relay SPST (N.O.)
  • Dry contact
  • Characteristics
    Contact rating:
    DC:3~ 30Vdc @1.0Arms
    Max. Load current 1.0Arms
    Min. Load current 10mArms
  • Max. off-state leakage current 0.1mA(at 30Vdc)
  • 1 Cycle surge current : 3A(10ms)
  • Max. on-state voltage drop:1.2Vdc
  • Surge strength: 4,000Vac
  • Relay on time(Max.): 1ms
  • Relay off time(Min.): 1ms
  • Insulation resistance: 1,000MOhm min.at 500Vdc
  • Life time : long life, maintence free


Communication Interface

  • RS-485


Power Supply

  • Input Power: 10 ~ 30Vdc
  • Consumption :
    0.6W max. for I-7063B
    1.4W max. for I-7063BD
