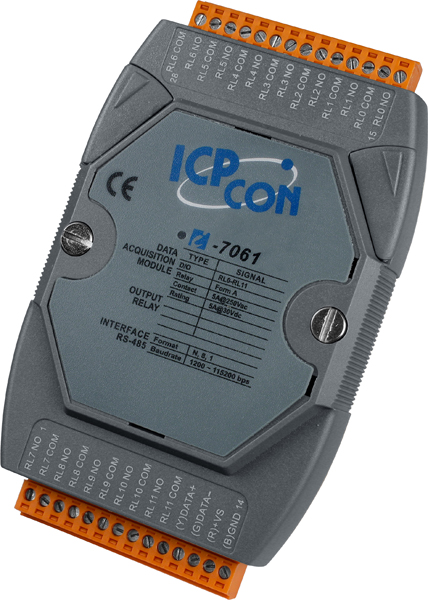

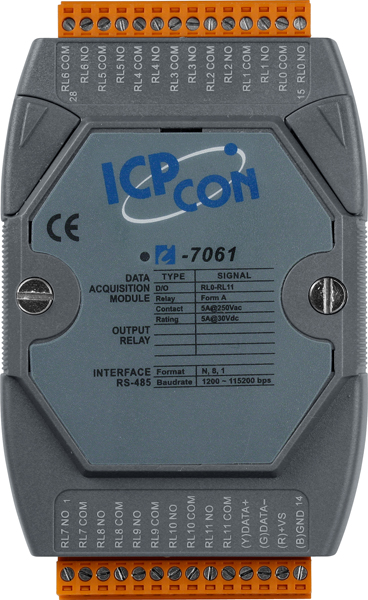

I-7061 offers 12 channels for relay output. All of its channels are Form A type relay. I-7061 has 12 LED indicators for channel status as well as qualification for 4 kV ESD protection and 3750 Vrms intra-module isolation.
| Relay Output | ||
| Output Channels | 12 | |
| Output Type | Power Relay, Form A ( SPST N.O.) | |
| Contact Rating | 250 VAC@5A 30 VDCA5A |
|
| Operating Time | 6 ms | |
| Release Time | 3 ms | |
| Electrical Life (Resistive load) | VDE: | 5 A@250 VAC 30,000 ops (10 ops/minute) at 75°C. |
| 5 A@30 VDC 70,000 ops (10 ops/minute) at 75°C. | ||
| UL: | 5 A@250 VAC/30 VDC 6,000 ops. | |
| 3 A@250 VAC/30 VDC 100,000 ops. | ||
| Mechanical Life | 20,000,000 ops. at no load (300 ops./minute). | |
| Intra-module Isolation, Field to Logic | 3750 Vrms | |
| ESD Protection | ±4KV Contact for each terminal, and ±8KV Air for random point | |
| EFT Protection | ±4KV to Power | |
| Surge Protection | ±3 kV for Power Input. | |
| Interface | ||
| Interface | RS-485 | |
| Format | N, 8, 1 | |
| Baud Rate | 1200 ~ 115200bps | |
| LED Display | ||
| 1 LED as Power/Communication indicator | ||

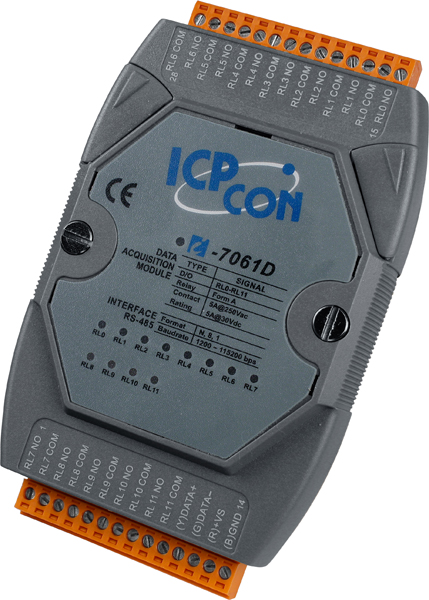

| 12 LEDs as Relay Output indicators (for I-7061D) | ||
| Power | ||
| Input Voltage Range | 10 ~ 30 VDC | |
| Power Consumption | 1.7 W (max.)(I-7061) / 2.3 W (max.)(I-7061D) | |
| Environment | ||
| Operating Temperature | -25 ~ 75°C | |
| Storage Temperature | -40 ~ 85°C | |
| Humidity | 5 ~ 95% RH, non-condensing | |
