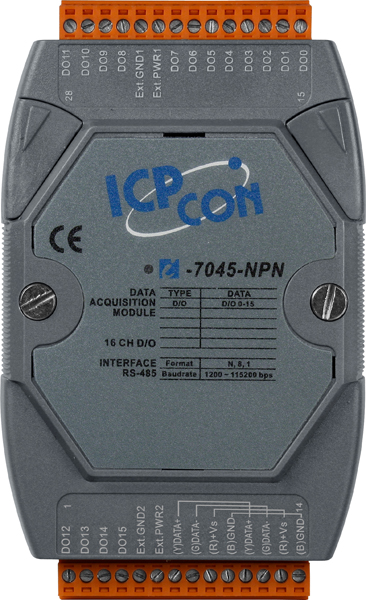

I-7045-NPN offers 16 channels for digital output, each of which features Photo-couple isolation. I-7045-NPN supports sink type output with short-circuits protection. There are options for power on value and safe value for your consideration. I-7045D-NPN has 16 LED indicators for DO channel status. 4 kV ESD protection, 4 kV EFT protection, 3 kV Surge Protection for Power Input and 3750 VDC intra-module isolation are standard.
| Digital Output | |
| Channels | 16, Sink(NPN) |
| Output Voltage | +3.5 ~ +50 V |
| Output Current | 700 mA per channel, Direct drive power relay module |
| Intra-module Isolation, Field to Logic | 3750 VDC |
| EFT Protection | ±4 kV to Power |
| ESD Protection (IEC 61000-4-2) | ±4 kV Contact for each terminal, |
| ±8 kV Air for random point | |
| Surge Protection | ±3 kV for Power Input. |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit and Overcurrent Protection | 1.4 A |
| Thermal Overload trip temperature | 150°C |
| Intra-module Isolation, Field to Logic | 3750 Vrms |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/ Communication indicator | |
| 16 LEDs as Digital Output indicators (for I-7045D-NPN) | |
| Power | |
| Input Voltage Range | 10 ~ 30 VDC |
| Power Consumption | 0.4 W (I-7045-NPN)/1.2 W(I-7045D-NPN) |
| Environment | |
| Operating Temperature | -25 ~ 75°C |
| Storage Temperature | -40 ~ 85°C |
| Humidity | 5 ~ 95% RH, non-condensing |
