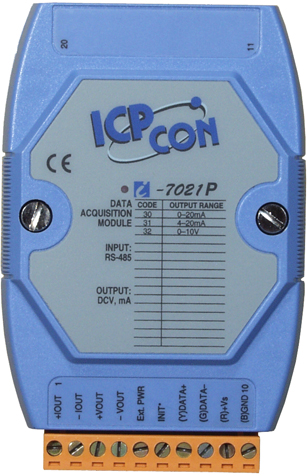

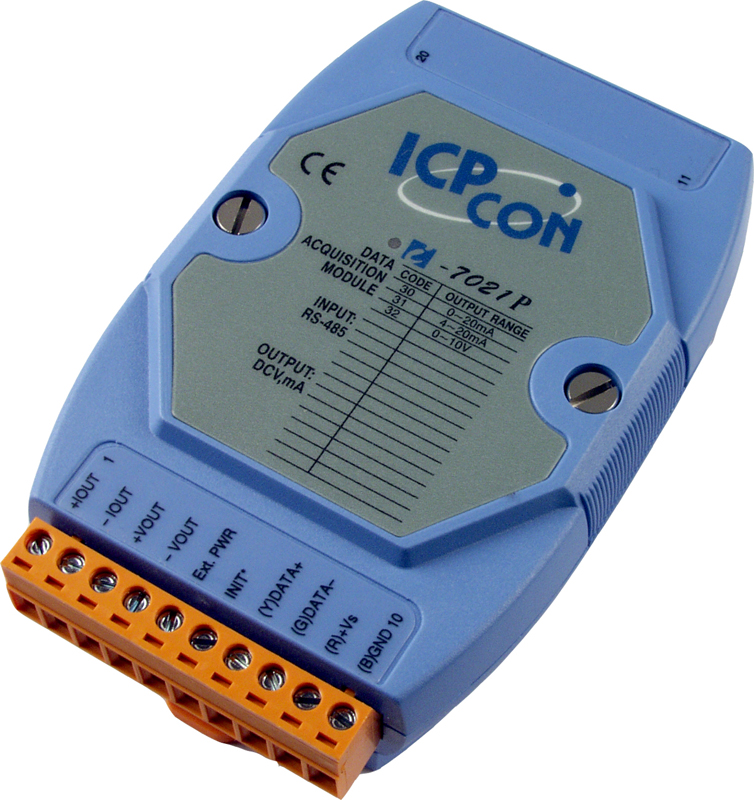

I-7021P

$419.00

1-channel Analog Output (Current Output or Voltage Output) Data Acquisition Module, communicable over RS-485 with High Precision. Comes with free EZ Data Logger Software for data logging. Supports operating temperatures between -25 to 75°C (-13F ~ 167F). Has a Din rail mount.

Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review:	Write your review
Resources:	CE Certification Data Sheet Data Sheet DCON Utility User's Manual Development software & drivers FCC Certification FREE EZ Data Logger Software I-7000 Dimensions I-7000 Getting Started Manual PIN Assignment Quick Start Guide User's Manual 2D DWG Drawing

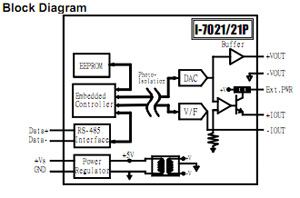

I-7021 Block Diagram

Introduction

The I-7021 is a 12-bit and I-7021P is a 16-bit, 1-channel Analog Output module that is designed for both voltage and current output. The I-7021 features 3000 VDC intra-module isolation and the power source for the current output can be selected as either internal or external via a jumper. Options are also provided to allow power-on and safe values to be set. Both support the DCON protocols which can be configured via software. I-7021P comes with FREE EZ Data Logger Software.

Features

Current or Voltage Output
High Resolution: 16-bit
Software Selectable Current or Voltage Output
Open Wire Detection for Current Output
Readback Voltage or Current
Configurable Power-on Value and Safe Value Settings
Programmable Output Slope
Built-in Dual Watchdog

FCC RoHS WEEE

Specifications

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal
Surge (IEC 61000-4-5)	±0.5 kV for Power Line

LED Indicators
Status	1 x Power and Communication

Analog Output
Channels	1 Unipolar
Type	Voltage Current
Range	Voltage: 0 ~ +10 V Current: 0 ~ +20 mA, +4 ~ +20 mA
Resolution	16-bit
Accuracy	±0.02% of FSR
Short Circuit Protection	Yes
DA Output Response Time	10 ms
Programmable Output Slope	Voltage: 0.0625 ~ 1024.0 V/Second Current: 0.125 ~ 2048 mA/Second
Open Wire Detection	For Current Only
Readback Accuracy	±0.5% of FSR
Current Load Resistance	Internal Power: 500 External Power: 1050
Power-on Value	Programmable
Safe Value	Programmable

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	1.8 W

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing
