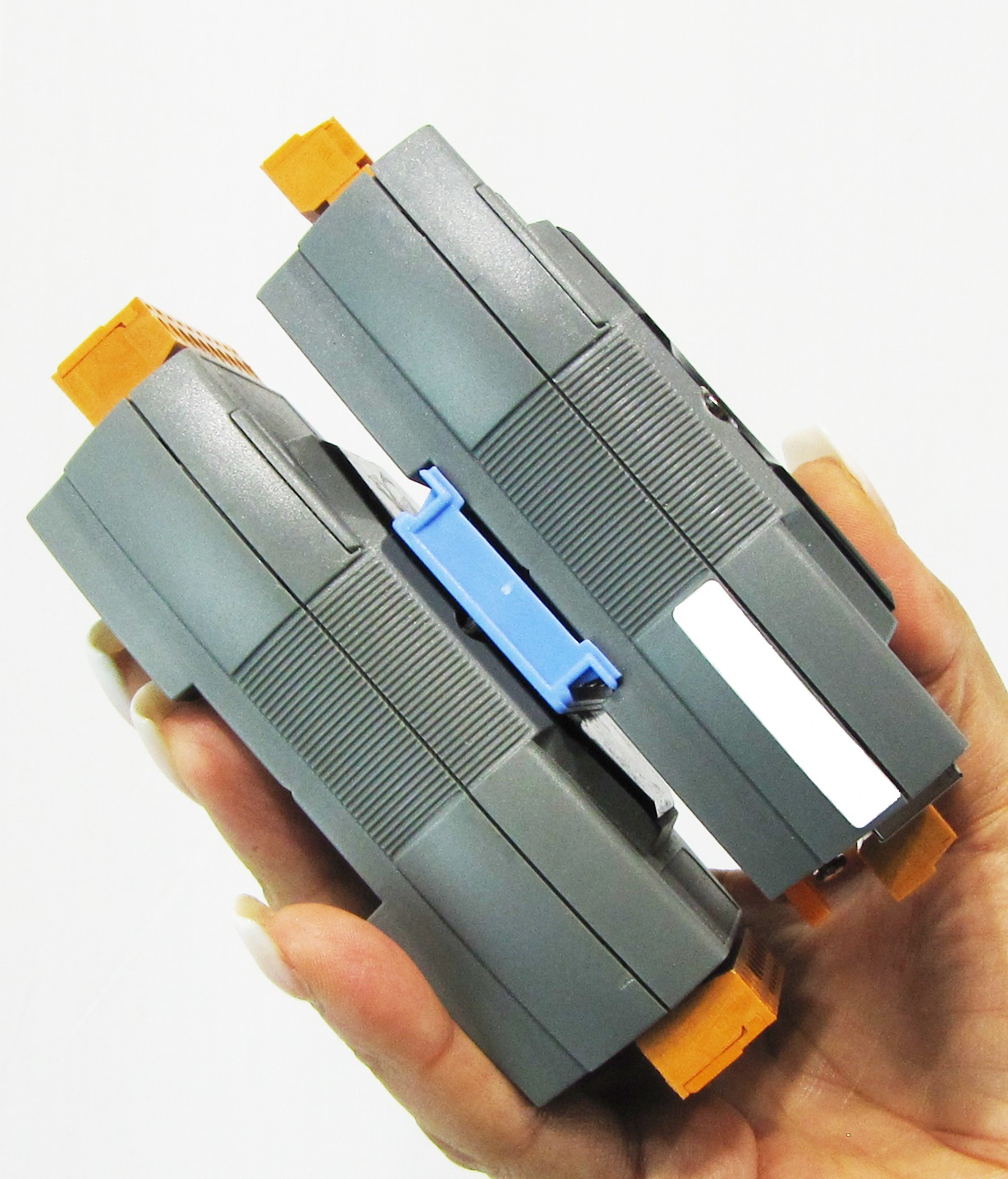

Main Product Image

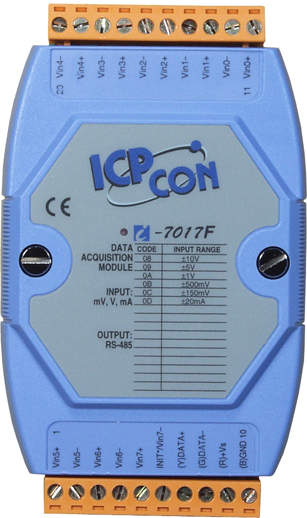

Main Product Image

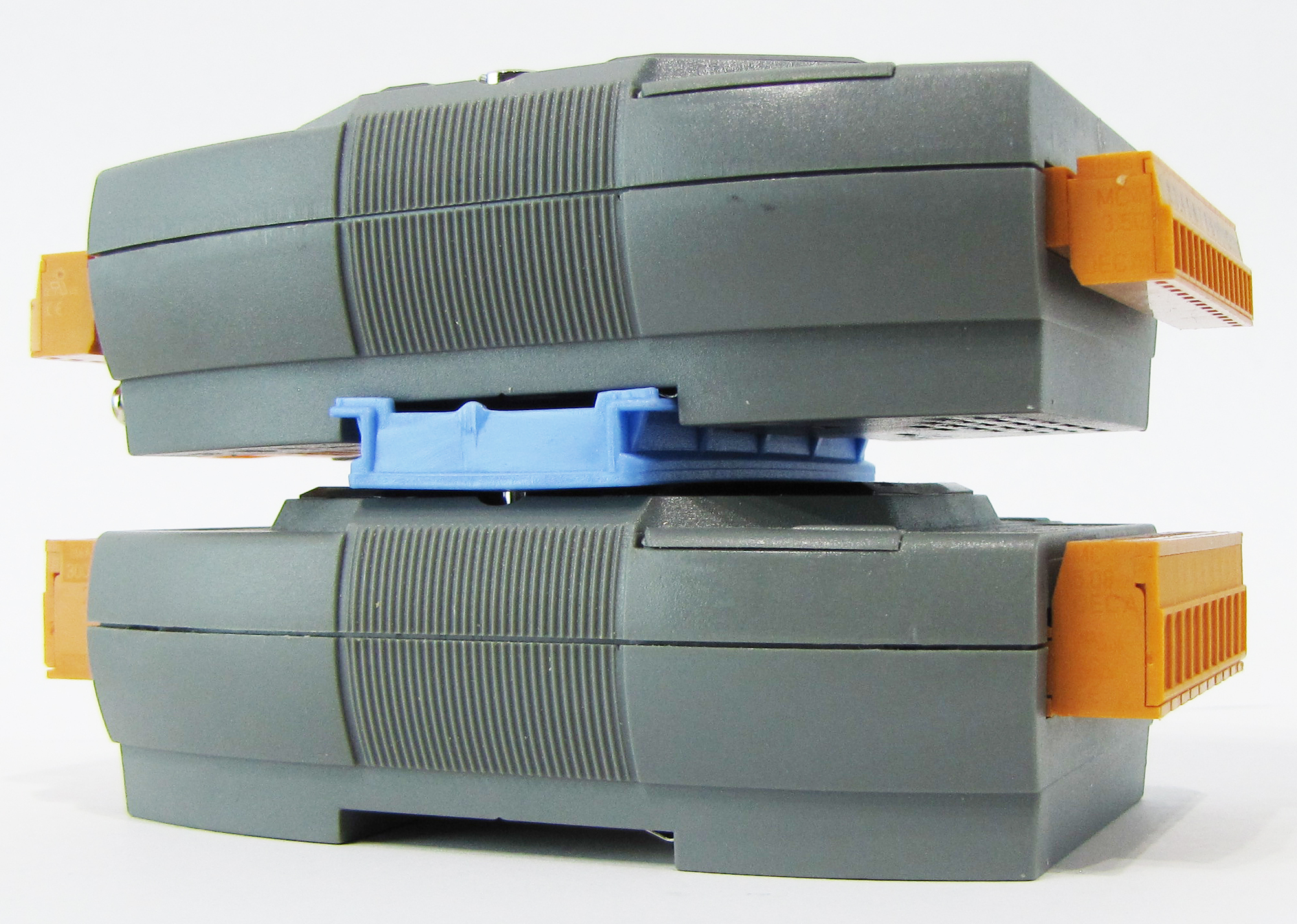

Main Product Image

I-7017F

$449.00
8 Channel Analog Input (Voltage Input and Current Input) Data Acquisition Module, communicable over RS-485. Supports 10 Samples/ Second (Normal Mode) / 60 Sample/ Second (Fast Mode) total . 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode) Comes with FREE EZ Data Logger Software. Supports operating temperatures between -25 °C ~ +75°C (-13°F ~ +167°F).
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review: Write your review
Resources:

I-7017F is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test the I-7017F Analog Input Modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7017F comes with FREE EZ Data Logger Software.

Specifications

Analog Input

  • Channels: 8 differential or 6 differential and 2 single- ended by jumper select
  • Resolution: 16-bit / 12-bit
  • Input type: mV, V , mA (requires optional external 125 ohm resistor)
  • Input range: ± 150mV, ± 500mV , ± 1V, ± 5V, ± 10V and ± 20mA
  • Mode Sample rate:
    Normal mode: 16-bit
    10 samples/second (total)
    Fast Mode: 12-bit
    60 samples/second
  • Bandwidth:
    15.7Hz (normal)
    78.7Hz (Fast)
  • Accuracy:
    ± 0.1% (Normal)
    ± 0.5% (Fast)
  • Zero drift: ± 20uV/°C
  • Span drift: ± 25ppm/°C
  • CMR @ 50/60 Hz: 86 dB min
  • NMR @ 50/60 Hz: 100 dB
  • Over voltage protection: ± 35V



Communication Interface

  • RS-485



Power Supply

  • Input: +10 to +30Vdc
  • Consumption :1.3W
