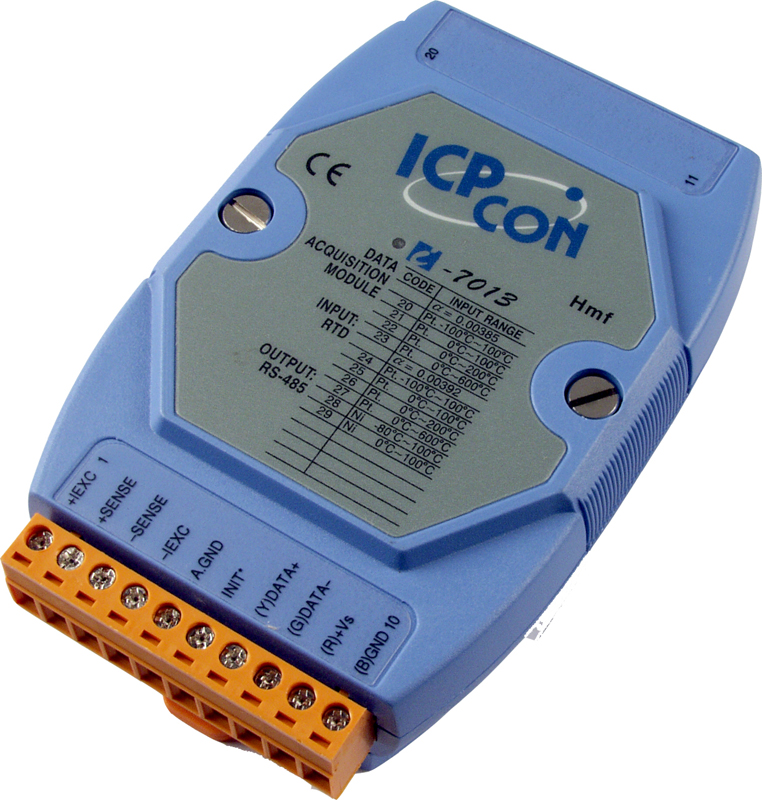

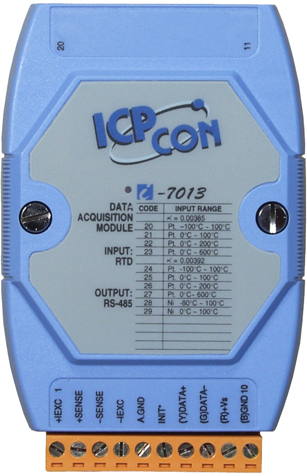

I-7013 is a single channel RTD Input Module. I-7013 is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7013 modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7013 comes with FREE EZ Data Logger Software.
| Analog Input | |
| Input Channels | 1 |
| Input Type | RTD |
| Wire connection | 2/3/4 wire |
| RTD Type | Pt100 =0.00385, Pt100 =0.003916, Ni120, Pt1000 =0.00385 |
| Resolution | 16-bit |
| Sampling Rate | 10 Samples/ Second |
| Accuracy | +/-0.05% |
| -3dB BandWidth | 5.24 Hz |
| Zero drift | +/-0.5uV/ °C |
| Span drift | +/-25uV/°C |
| Common Mode Rejection | 150dB min. |
| Normal Mode Rejection | 100dB |
| Open Wire Detection | Yes |
| Overvoltage Protection | +/-5V (P-P) |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Display | |
| 1 LED as Power/ Communication indicator | |
| 4 1/2 digits (for I-7013D) | |
| Power | |
| Input Voltage Range | +10 to +30 Vdc |
| Power Consumption | 0.7W (I-7013) / 1.3W (I-7013D) |
| Environment | |
| Operating temperature | -25 to 75°C |
| Storage temperature | -40 to 85°C |
| Humidity | 5 to 95% RH, non-condensing |
| Type Code | RTD Type | Temperature Range °C |
| 20 | Platinum 100, = 0.00385 | -100 ~ 100 |
| 21 | Platinum 100, = 0.00385 | 0 ~ 100 |
| 22 | Platinum 100, = 0.00385 | 0 ~ 200 |
| 23 | Platinum 100, = 0.00385 | 0 ~ 600 |
| 24 | Platinum 100, = 0.003916 | -100 ~ 100 |
| 25 | Platinum 100, = 0.003916 | 0 ~ 100 |
| 26 | Platinum 100, = 0.003916 | 0 ~ 200 |
| 27 | Platinum 100, = 0.003916 | 0 ~ 600 |
| 28 | Nickel 120 | -80 ~ 100 |
| 29 | Nickel 120 | 0 ~ 100 |
| 2A | Platinum 1000, = 0.00385 | -200 ~ 600 |
| 2E | PT 100, = 0.00385 | -200°C ~ +200°C |
| 2F | PT 100, = 0.003916 | -200°C ~ +200°C |
| 80 | PT 100, = 0.00385 | -200°C ~ +600°C |
| 81 | PT 100, = 0.003916 | -200°C ~ +600°C |
