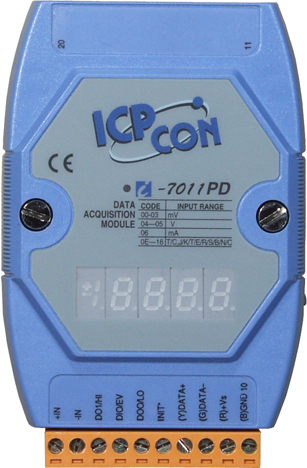

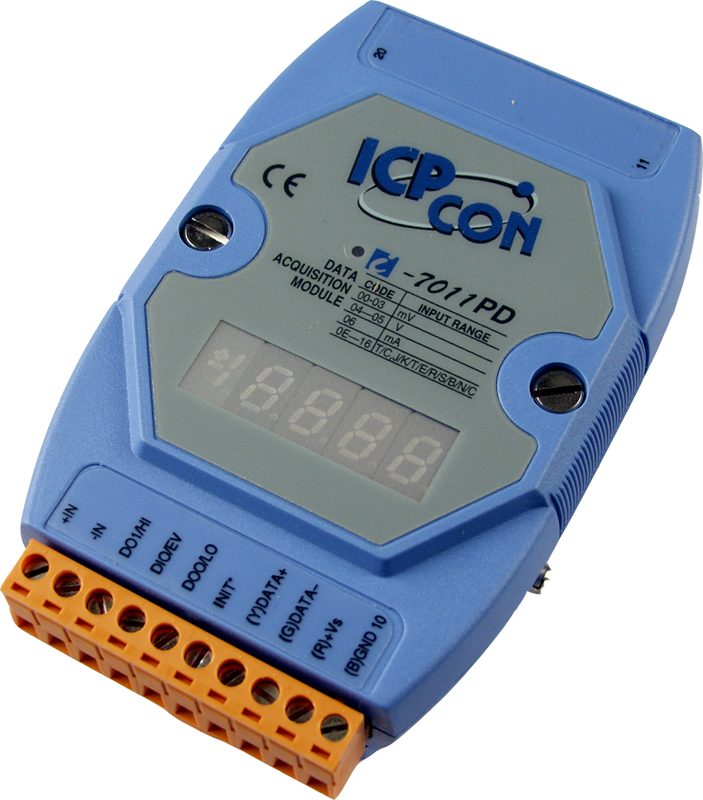

I-7011PD

$469.00
Voltage Input & Current Input Thermocouple Input Data Acquisition Module with 1 Analog Input, 1 Digital Input, 2 Digital Output Channels, communicable over RS-485 with LED display, and FREE EZ Data Logger Software. Supports operating temperatures between -25 to 75°C.
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-7000 Remote Data Acquisition Modules via RS-485 / DCON Protocol
Review: Write your review
Resources:

The I-7011PD module provides cost-effective protection and conditioning for a wide range of valuable industrial control signals and systems. DCON utility can help users to configure and test I-7011PD modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7011PD comes with FREE EZ Data Logger Software.

Specifications

Analog Input

  • Photo-isolation: 3750 Vrms
  • Type: mV, V , mA (requires optional external 125 ohm resistor)
  • Thermocouple: Type J, K, T, E, R, S, B, N, C, L, M
  • Input Channel: 1
  • Voltage range: +/-15mV, +/-50mV, +/-100mV,+/- 500mV,
    +/-1V,+/- 2.5V
  • Current range: +/- 20mA
  • Resolution: 16-bit
  • Sampling rate: 10 Samples/Second
  • Bandwidth: 5.24 Hz
  • Input impedance: 20M ohms
  • Accuracy: ±0.05%
  • Zero Drift: ± 0.5uV/ °C
  • Span Drift: 25ppm/°C
  • CMR @ 50/60 Hz: 150 dB
  • NMR @ 50/60 Hz: 100 dB
  • Over voltage protection:35V (P-P)
  • Isolation: 3000Vrms
Thermocouple type : (C)
Type
Range (°C)
J
-210 ~ +760
K
-270 ~ +1372
T
-270 ~ +400
E
-270 ~ +1000
R
0 ~ +1768
S
0 ~ +1768
B
0 ~ +1820
N
-270 ~ 1300
C
0 ~ 2320
L
-200 ~ 800
M
-200 ~ 100



Digital Input

  • Channel: 1
  • Logic Level 0: + 1V max
  • Logic Level 1: + 3.5V to 30V


Event Counter

  • Max Input Frequency: 50Hz
  • Min. Pulse Width:1 mS


Digital Output

  • Channels: 2
  • Open collector to 30V
  • Output Load: sink 30mA max.
  • Power dissipation: 300mW


Display LED

  • 4 1/2 digits (for I-7011PD)


Communication Interface

  • RS-485


Power Supply

  • Input: +10 to +30 Vdc
  • Consumption:
    0.9W for I-7011P
    1.5W for I-7011PD
