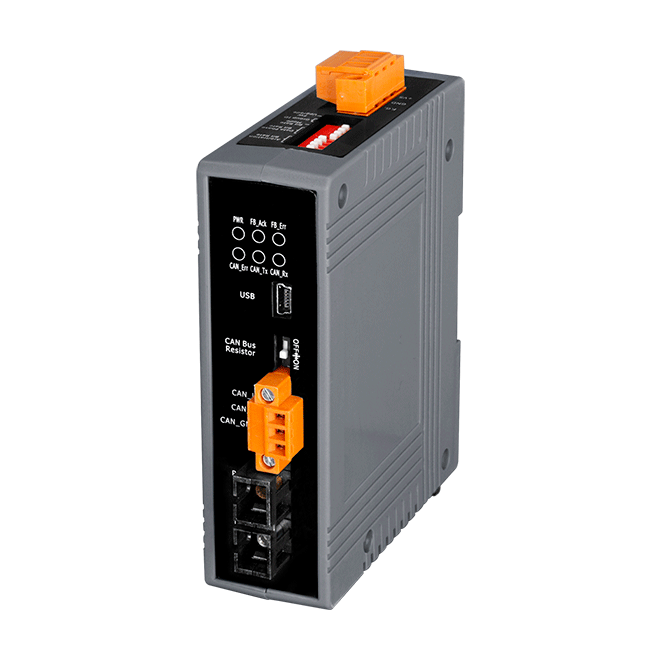

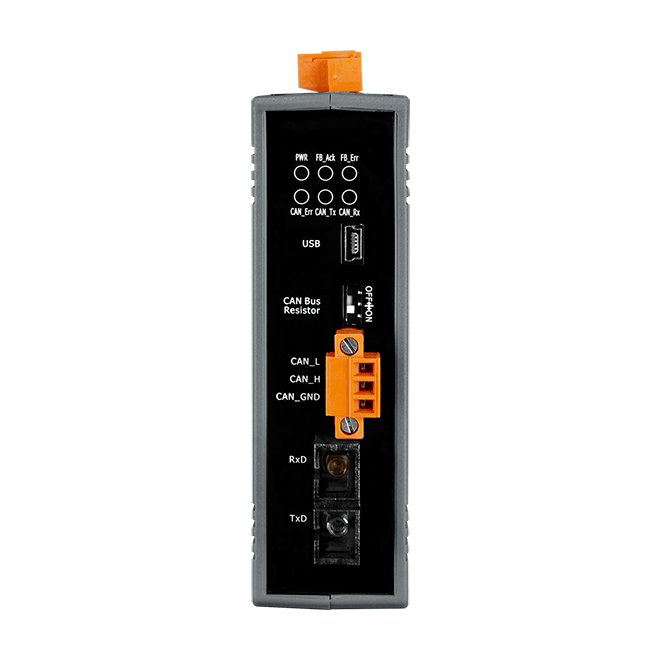

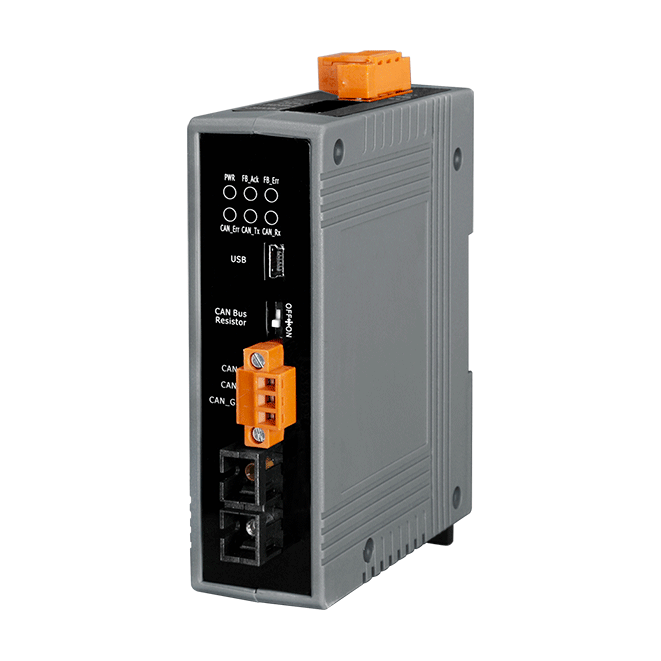

I-2533CS-FD

• Compatible with the ISO 11898-2 standard
• Compatible with CAN specification 2.0 A/B and FD
• CAN FD support for ISO and Non-ISO (Bosch) standards switchable
• CAN FD bit rates for data field from 100 kbps to 10000 kbps
• CAN bit rates from 10 kbps to 1000 kbps
• Fiber broken line detection
• Support CAN Bus message filter configuration
• Support firmware update via USB
• Basic CAN message routing function via Group ID settings.
• Built-in switchable 120 ohm terminal resistor for CAN Bus

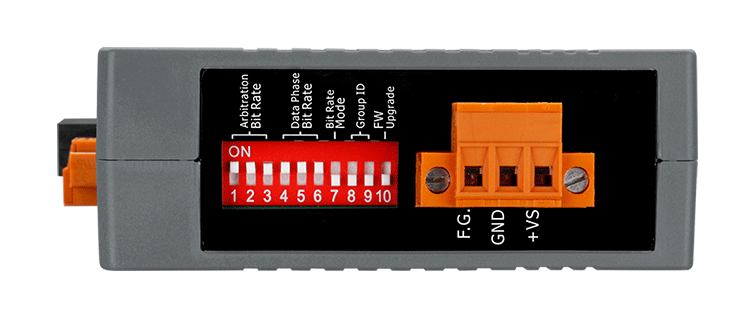

• Dip switch for CAN/CAN FD baud rate configuration

Introduction

The I-2533CS-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN/CAN FD and fiber transmission medium, the I-2533CS-FD is specially designed for converting the electrical CAN/CAN FD bus signal to fiber optic cables. Besides, I-2533CS-FD has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN/CAN FD baud rate. It means that the total CAN/CAN FD bus working distance can be extended. Second, the bus error on one CAN/CAN FD network will not affect the operation of another CAN/CAN FD network. Finally, the two CAN/CAN FD network can communication with each other by using different CAN/CAN FD baud rate for highly flexibility.

Applications

• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition
