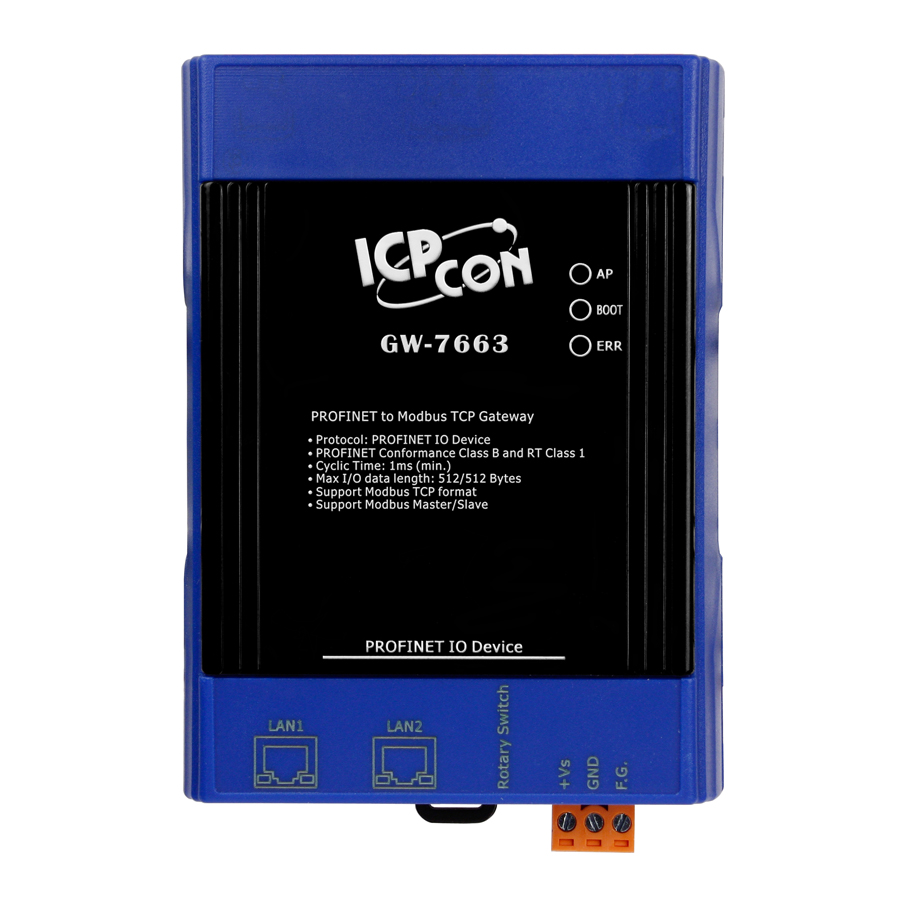

Main Product Image

GW-7663

$979.00
PROFINET to Modbus TCP Gateway. Comes with 2 RJ-45 ports, RS-232/RS-422/RS-485 communication interface, and free utility for easy configuration. Supports Modbus Master and Slave mode. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F).
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: ProfiNet Converters | Profinet Converters and Gateways
Review: Write your review
Resources:
Application Image GW-7663 Profinet to Modbus TCP Converter

The GW-7663 is designed for PROFINET IO device. It allows PROFINET controller to access Modbus TCP devices like PLC, sensor, I-8KE4-MCTP, and ET-7000 web based Ethernet I/O modules. We also provide a utility software for users to easily configure GW-7663. By using this module, users can integrate their Modbus devices into PROFINET network.

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Max length of input/output data is 512/512 Bytes
  • Support Modbus Master and Slave mode
  • Provide LED indicators
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C)

Utility

ICP DAS provides the PFN_Tool configuration utility to configure devices.

  • Provide Modbus device setting
  • Show diagnostic messages
  • Provide Modbus test function
  • Provide Communication Log of Modbus network
GW-7663 Profinet to Modbus TCP converter utility

Modbus Support

GW-7663 profinet to modbus tcp converter modbus support

Specifications

Hardware
CPU
32-bit CPU Core
RAM/Flash/EEPROM
32 MB / 4 MB / 8 KB
Watchdog
CPU built-in
ESD Protection
4 kV class A
PROFINET Interface
Protocol
PROFINET IO Device
Conformance Classes
Class B
Services
RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time
1 ms (min)
Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
LED
Round LED
AP LED, BOOT LED, ERR LED
Power
Power Supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption
3.4 W
Mechansim
Installation DIN-Rail
Dimensions
42 mm x 76 mm x 119 mm (W x L x H)
Environment
Operating Temperature -25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature -30°C ~ +80°C (-22°F ~ +176°F)
Humidity
10 ~ 90% RH, non-condensing
