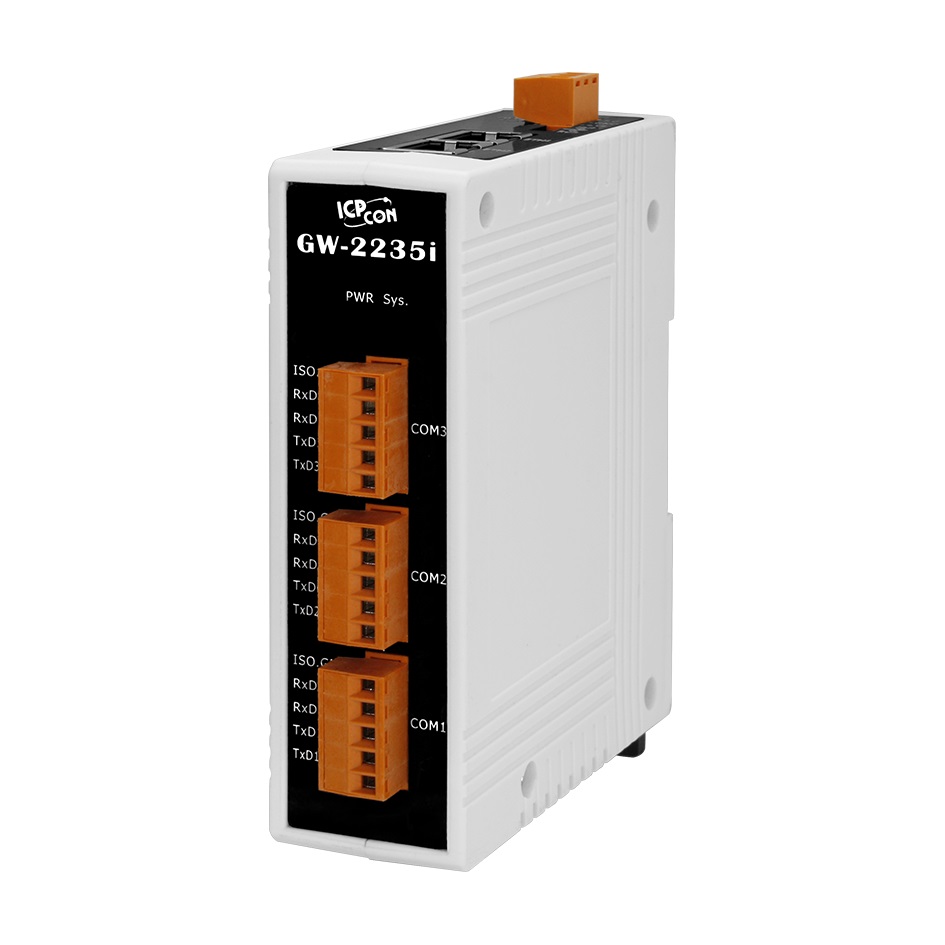

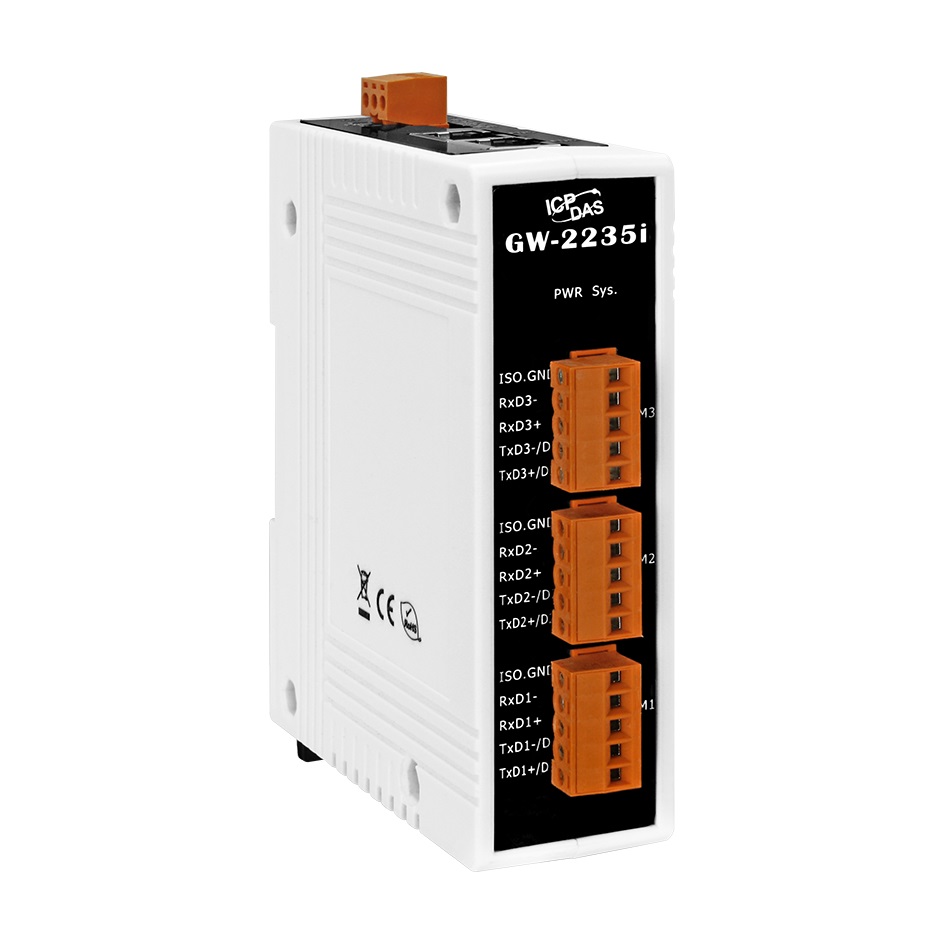

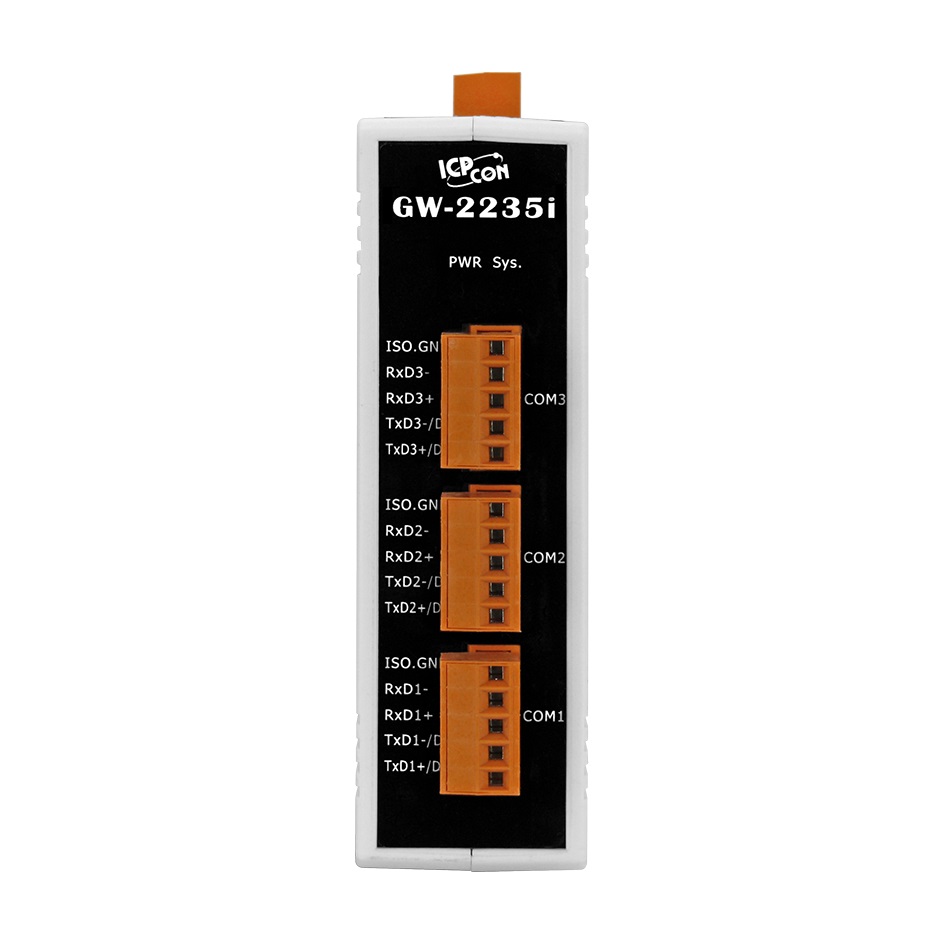

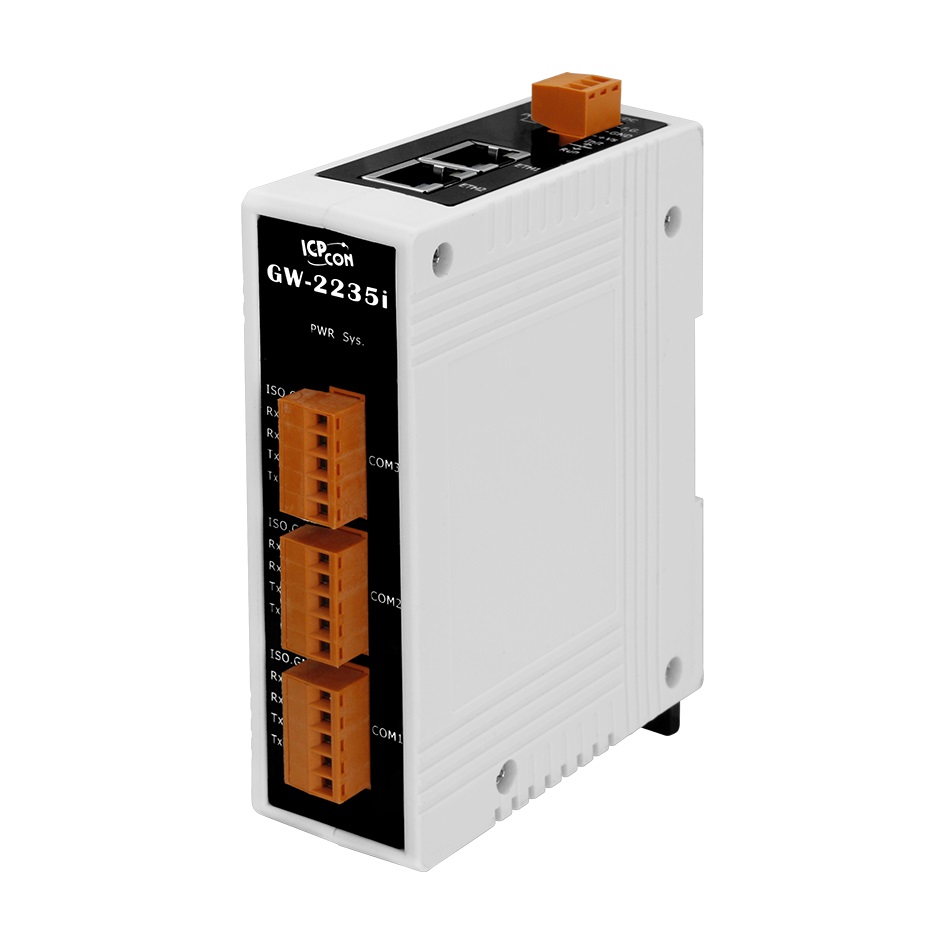

GW-2200i module features a powerful 32-bit MCU to enable efficient handling of network traffic, and also has a built-in web server that provides an intuitive web management interface that allows users to modify the configuration of the module, including the DHCP/Static IP, the gateway/mask settings and the serial port settings.
| System | |
| CPU | 32-bit MCU |
| Communication Interface | |
| Ethernet | 700 Series: 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) 2200i Series: 2-Port 10/100 Base-TX Ethernet Switch with LAN Bypass, RJ-45 x 2 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| PoE | IEEE 802.3af, Class 1 |
| COM Port | 700 Series: 3 x RS-485 2200i Series: 3 x RS-422/RS-485 |
| Self-Tuner | Yes, automatic RS-485 direction control |
| Isolation | 3000 VDC (Signal isolation for i version) |
| ESD Protection | +/-4 kV |
| COM Port Capability (16C550 or compatible UART) | |
| Baud Rate | 115200 bps Max. |
| Data Bit | 5, 6, 7, 8 |
| Parity | None, Odd, Even, Mark, Space |
| Stop Bit | 1, 2 |
| Power | |
| Power Input | IEEE 802.3af, Class 1 for PoE; +12 ~ 48 VDC for DC Jack |
| Power Consumption | 0.07 A @ 24 VDC |
| Mechanical | |
| Connector | 700 Series: 10-pin Removable Terminal Block x 1 2200i Series: 5-pin Removable Terminal Block x 1 for 2212i/2215i; x 2 for 2222i/2225i; x 3 for 2232i/2235i |
| Dimensions (mm) | 700 Series: 52 mm x 95 mm x 27 mm (tDS/tGW-712: 52 mm x 90 mm x 27 mm) (tDSM-712: 75 mm x 83 mm x 24 mm) 2200i Series: 90mm x 110mm x 33mm (without connectors) |
| Installation | DIN-Rail mounting |
| Case | Plastic |
| Environmental | |
| Operating Temperature | -25°C ~ +75°C |
| Storage Temperature | -30°C ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
