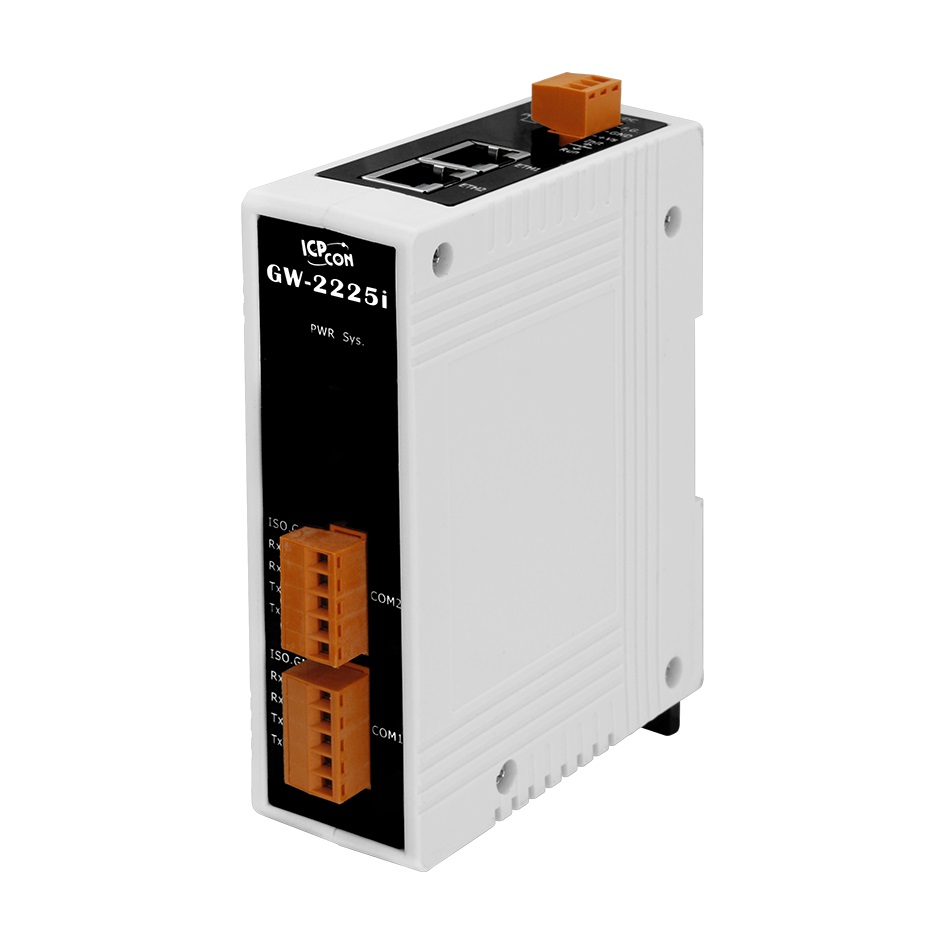

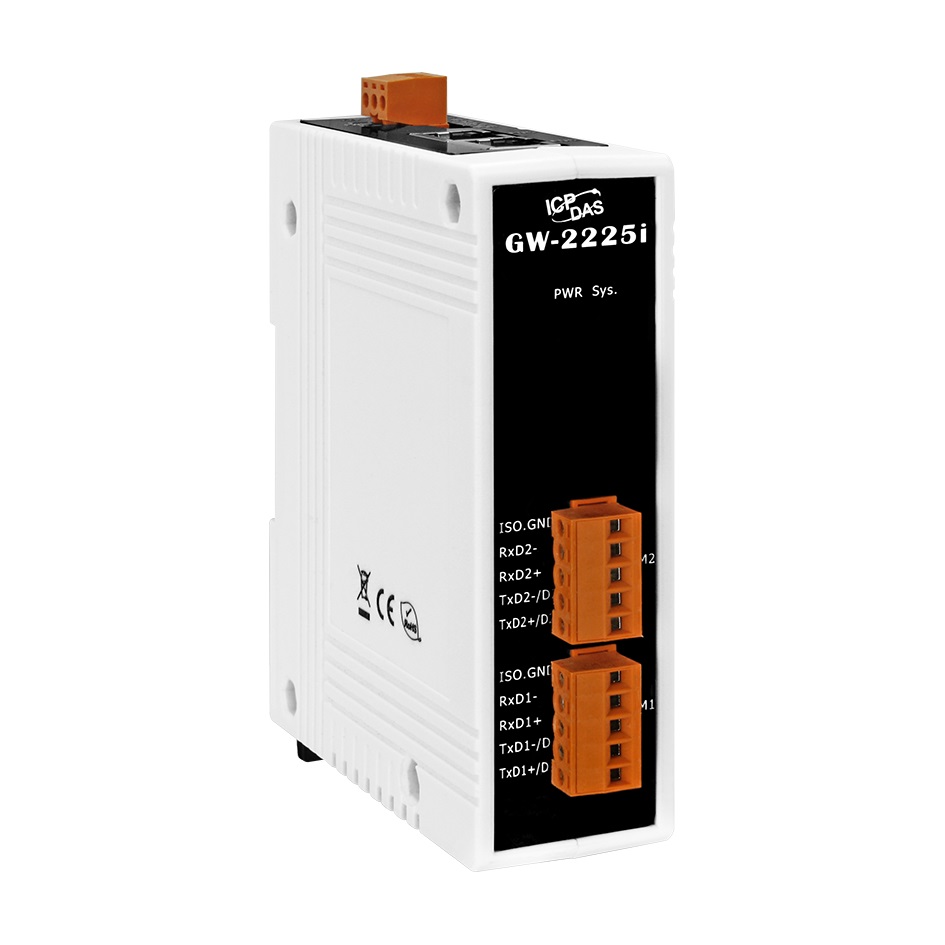

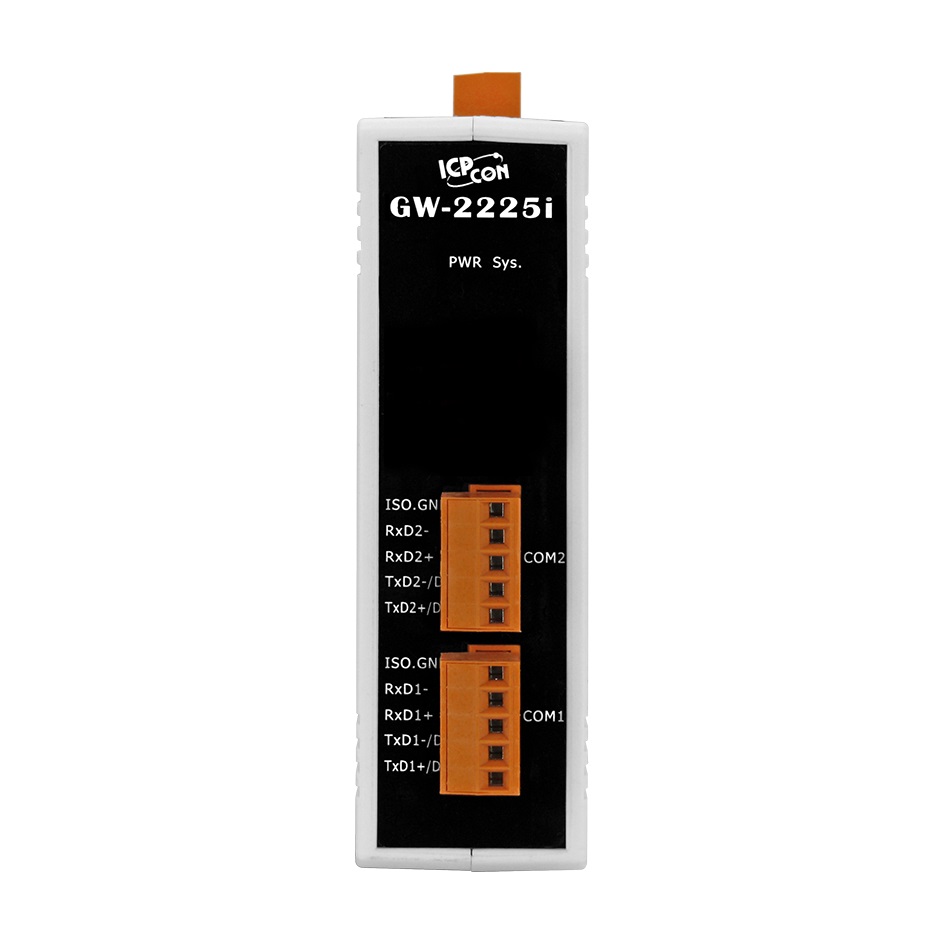

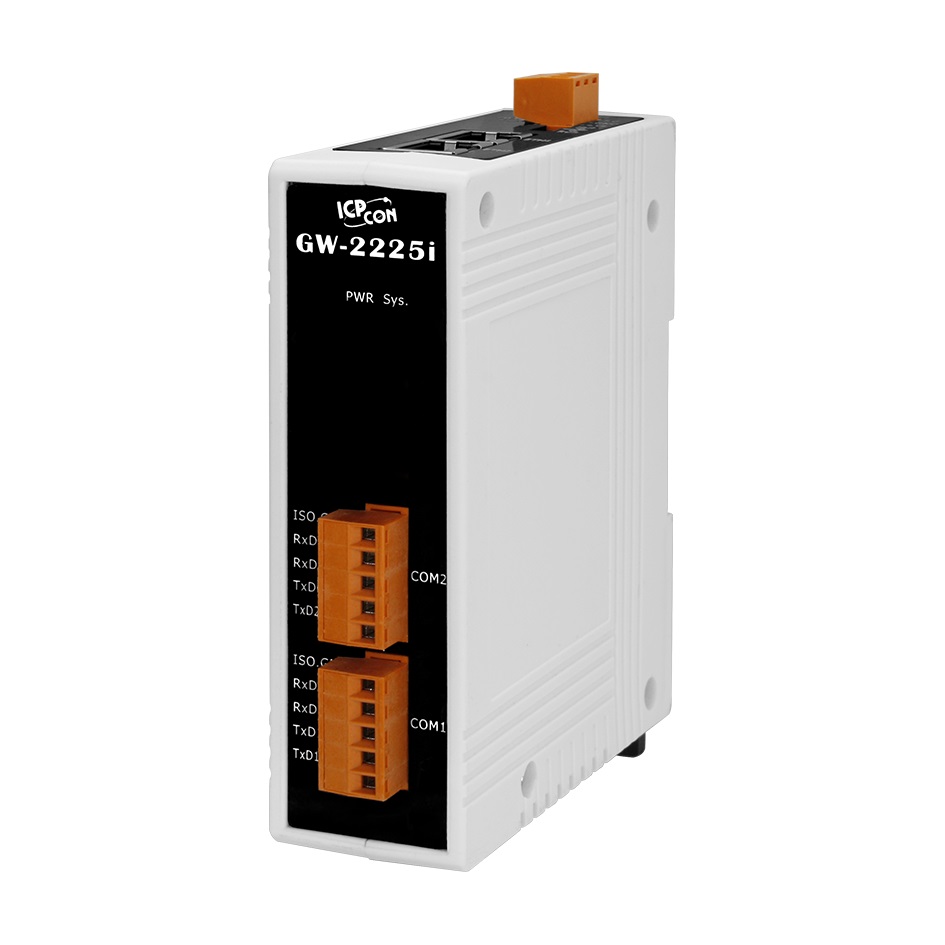

GW-2225i

$329.00

Modbus TCP to RTU / ASCII Gateway with 2 x RS-422/485 ports, DIN-Rail Mount and 2 x 10/100 Base-TX Ethernet RJ-45 Ports. Supports up to 32 Modbus TCP masters per serial port, static or DHCP IP configuration and Operating Temperature from -30°C to 75°C (-22°F to 167°F). Supports PoE and can be powered over Ethernet or Powered by 12 to 48 VDC

Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	tGW-700 and GW-2200 Series Modbus TCP to RTU/ASCII Device Servers \| New Products
Review:	Write your review
Resources:	Data Sheet Quick Start User Manual 2D DWG Drawing

Introduction

GW-2200i module features a powerful 32-bit MCU to enable efficient handling of network traffic, and also has a built-in web server that provides an intuitive web management interface that allows users to modify the configuration of the module, including the DHCP/Static IP, the gateway/mask settings and the serial port settings.

Features

Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP masters per serial port: 32 (RevB)
Read-cache ensures faster Modbus TCP/UDP response
Supports UDP responder for device discovery (UDP Search)
Static IP or DHCP network confi guration
Easy fi rmware update via the Ethernet (BOOTP, TFTP)
Tiny Web server for serial and network confi guration (HTTP)
Redundant power inputs: PoE and DC jack
tGW-700: 10/100 Base-TX Ethernet, RJ-45 × 1
GW-2200i: 2-port Ethernet Switch (LAN Bypass for Daisy- Chain Wiring
Allows automatic RS-485 direction control
2500 VDC isolation and +/-4 kV ESD protection for i versions
Male DB-9 or terminal block connector for easy wiring
Tiny form-factor and low power consumption
RoHS compliant & no Halogen

Applications

Factory Automation
Home Automation
Building Automation
Remote Diagnosis and Management

FCC RoHS WEEE

Specifications

CPU Module
CPU	32-bit ARM

Ethernet

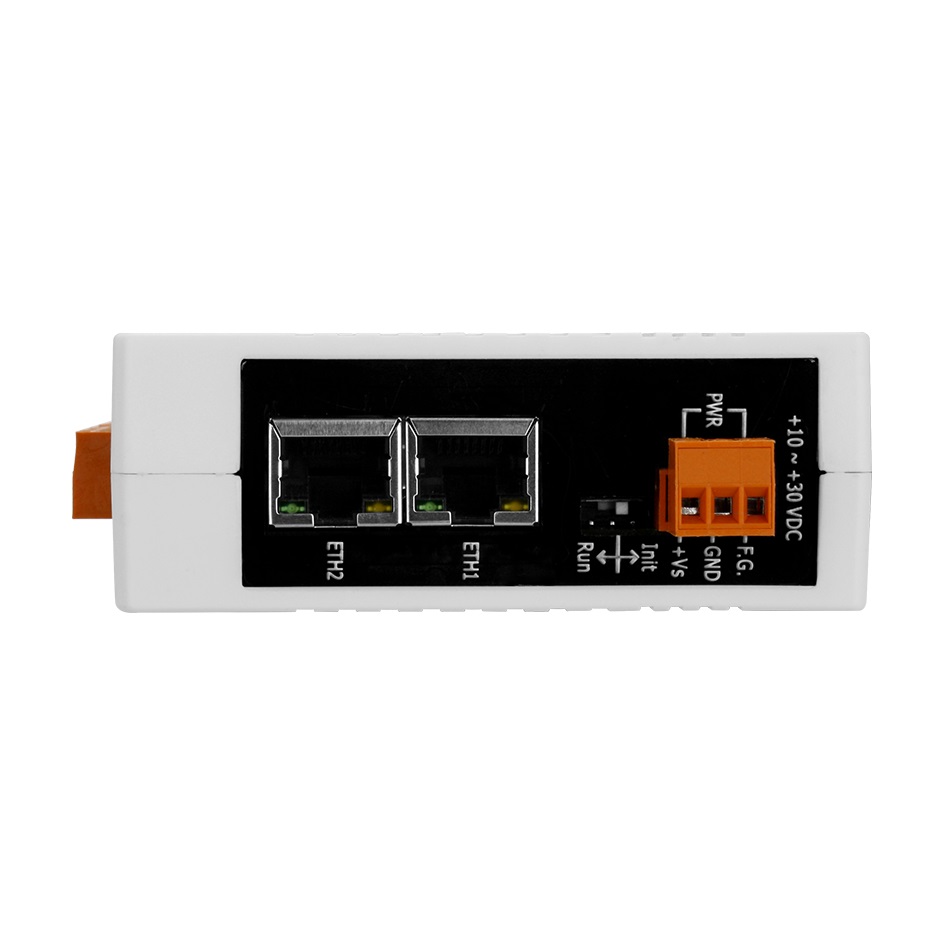

Ports	10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1)

COM Ports
Ports	2 x RS-485/422 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation)
Baud Rate	115200 bps Max.
Bias Resistor	Yes, 1 K
Parity	None, Odd, Even, Mark, Space
Data Bit	5, 6, 7, 8
Stop Bit	1, 2
Node Address	254 (max.)

Power
Consumption	0.07 A @ 24 VDC
Powered from PoE	IEEE 802.3af, Class 1
Powered from Terminal Block	+12 ~ 48 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	97 mm x 33 mm x 126 mm (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, non-condensing
