FR-2053HT

$0.00

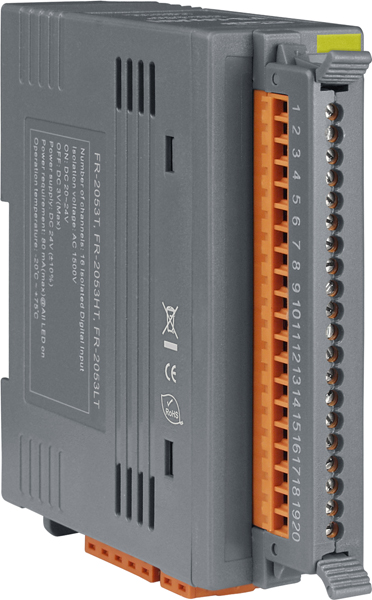

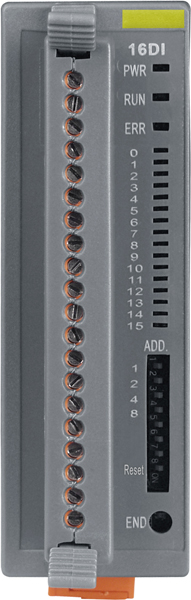

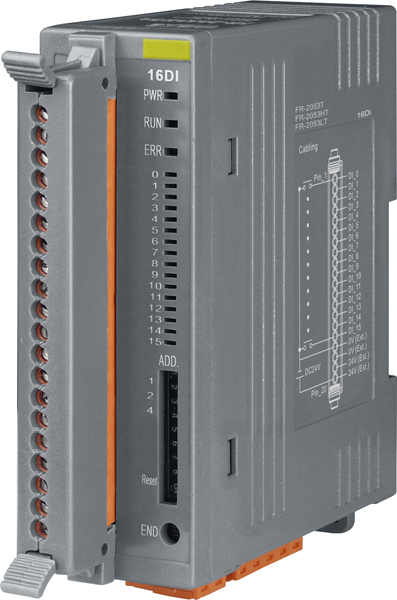

16-channel isolated digital input module with 20-pin screw terminal connector

Product Unavailable

Share On:
Categories:	FR-Net I/O Modules
Review:	Write your review
Resources:	Manual Pin Assignment

The FR-2053HT has 16-channel isolated photo coupler input and a 20-pin screw terminal connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. The FR-2000 series I/O modules have FRnet interface. This allows users to daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily.

Built-in Wire-saving FRnet DI/DO control
High-speed transmission reliability
Simple synchronization mechanism
No software overhead on protocol processing
Supporting broadcasting (1:n data transmission)
Duplicating output easily
Fixed I/O scan-time and I/O synchronization
DIN-Rail mountable

Applications

Specifications

Analog Input

Input Channels

Input Type

Sink (NPN)

On Voltage Level

+20~24VDC

Off Voltage Level

+3VDC max

Input Impedance

4.7 kOhm

Turn-on delay time

less than 1.0ms

Turn-off delay time

less than 1.0ms

Isolation Voltage

1500Vrms

Interface

2-wire cabling

2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change

Transfer distance

Max. 400m for FR-2053/FR-2053T, Max. 100m for FR-2053HT

LED Indicators

Power, Communication Run, Communication Error, Terminal resistor, Digital output

Transfer speed

250 kbps for FR-2053/FR-2053T 1 Mbps for FR-2053HT

Cyclic scan time

2.88ms for FR-2053/FR-2053T 0.72ms for FR-2053HT

Connection

20-pin header for FR-2053,Removable 20-pin Terminal Block for FR-2053T/FR-2053HT

Power

Input Voltage Range

+10 ~ +24 VDC (Non-isolation)

Power Consumption

2 W Max.

Protection

Power reverse polarity protection

Frame Ground for EMS Protection

Yes

Connector

5-Pin Removable Terminal Block

Mechanical

Plastic (Flammability UL 94V-0)

Dimensions (W x L x H)

33 mm x 102 mm x 110 mm

Installation

DIN-Rail

Environment

Operating Temperature

-25 °C ~ +75 °C

Storage Temperature

-30 °C ~ +85 °C

Ambient Relative Humidity

10% ~ 90% RH, non-condensing
