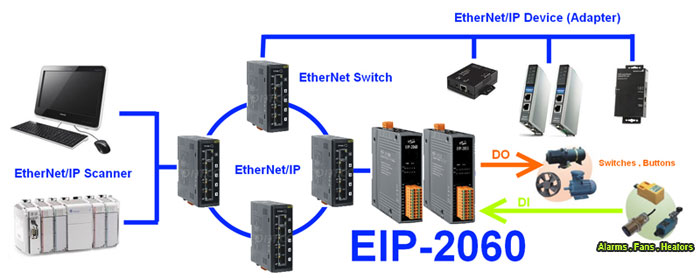

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.
The EIP-2060 is a remote digital I/O module with 6 DIs and 6 Relay. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2060 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

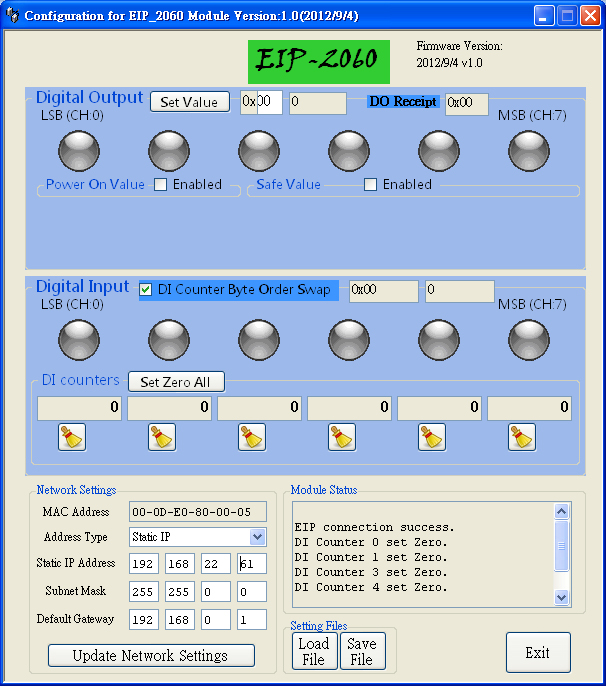

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.
| Digital Input/Counter | |
|---|---|
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +5 VDC ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 3 kHz |
| Input Impedance | 7.5 k |
| Relay Output | |
|---|---|
| Channels | 6 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms (max.) |
| Release Time | 5 ms (max.) |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 x 10^7 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection |
| Protocol | Ethernet/IP (Adapter) |
| Power | |
|---|---|
| Consumption | Non-RevB : 1.6W ; RevB : 3.3W Max |
| Mechanical | |
|---|---|
| Dimensions (mm) | 110 x 90 x 33 (H x W x D) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 |
| Storage Temperature | -30 ~ +80 |
| Humidity | 10 ~ 90% RH, Non-condensing |
