The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.
The EIP-2055 is a remote digital I/O module with 8 inputs and 8 outputs. It is designed as an EtherNet/IP adapter. Users can obtain the I/O status as well as the connection status of the EIP-2055 by the LEDs. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

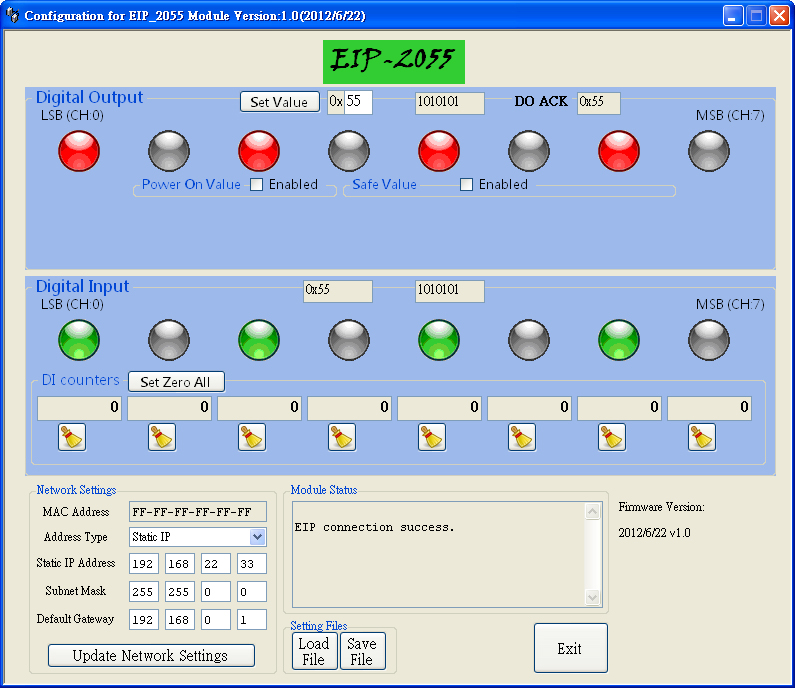

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.
| Digital Input | ||
| Channels | 8 | |
| Input Type | Dry Contact: Source, Wet Contact: Sink / Source | |
| Dry Contact Level | Off Voltage Level: Open On Voltage Level: Close to GND |
|
| Wet Contact Level | Off Voltage Level: +4V max. On Voltage Level: +10 V ~ +50 V |
|
| Counters | Channels | 8 |
| Max. Counts | 32-bit (4294967295) | |
| Max. Input Frequency | 5KHz | |
| Photo-Isolation | 3750 VDC | |
| Digital Output | ||
| Channels | 8 | |
| Isolation Voltage | 3750 VDC | |
| Type | Open Collector | |
| Sink/Source(NPN/PNP) | Sink | |
| Load Voltage | +3.5 ~ +50 V | |
| Max. Load Current | 700mA per channel | |
| Communication Interface | ||
| Connector | 10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection |
|
| Standard Supported | IEEE 802.3 Ethernet/IP | |
| Power | ||
| Input Voltage Range | 10V ~ 30V | |
| Power Consumption | 1.6W | |
| Mechanism | ||
| Installation | DIN-Rail | |
| Dimensions | 110mm x 90mm x 33mm (H x W x D) | |
| Environment | ||
| Operating Temperature | -25℃ ~ +75℃ | |
| Storage Temperature | -30℃ ~ +80℃ | |
| Humidity | 10% ~ 90% | |
