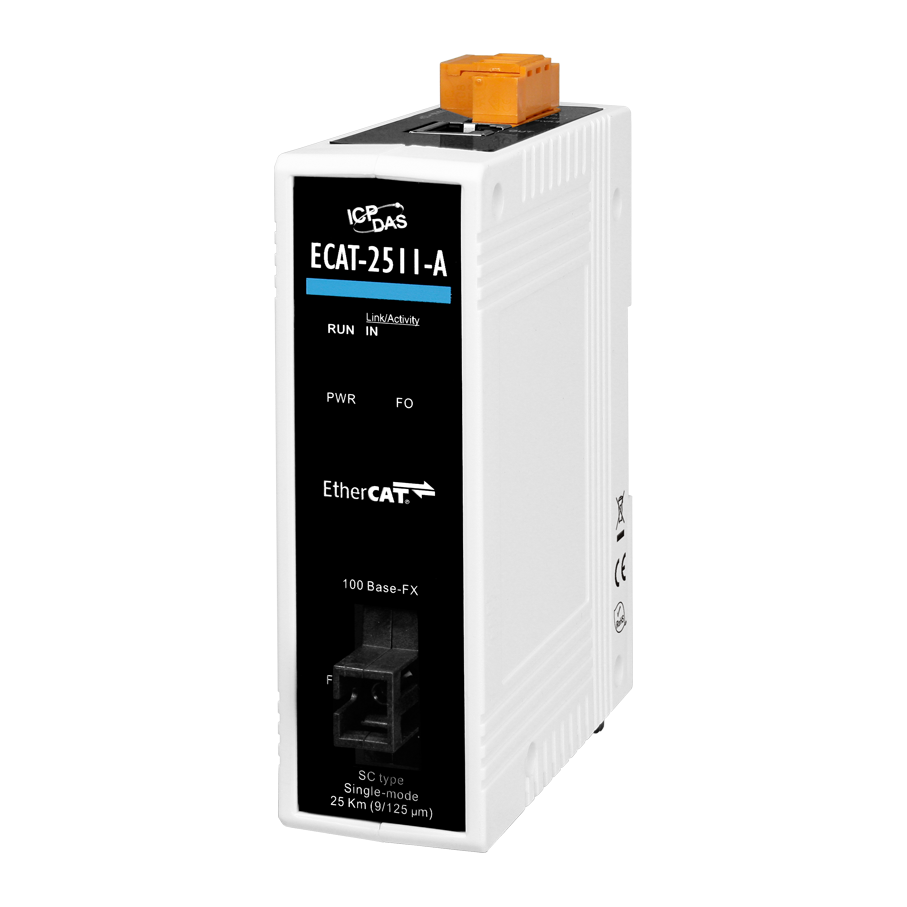

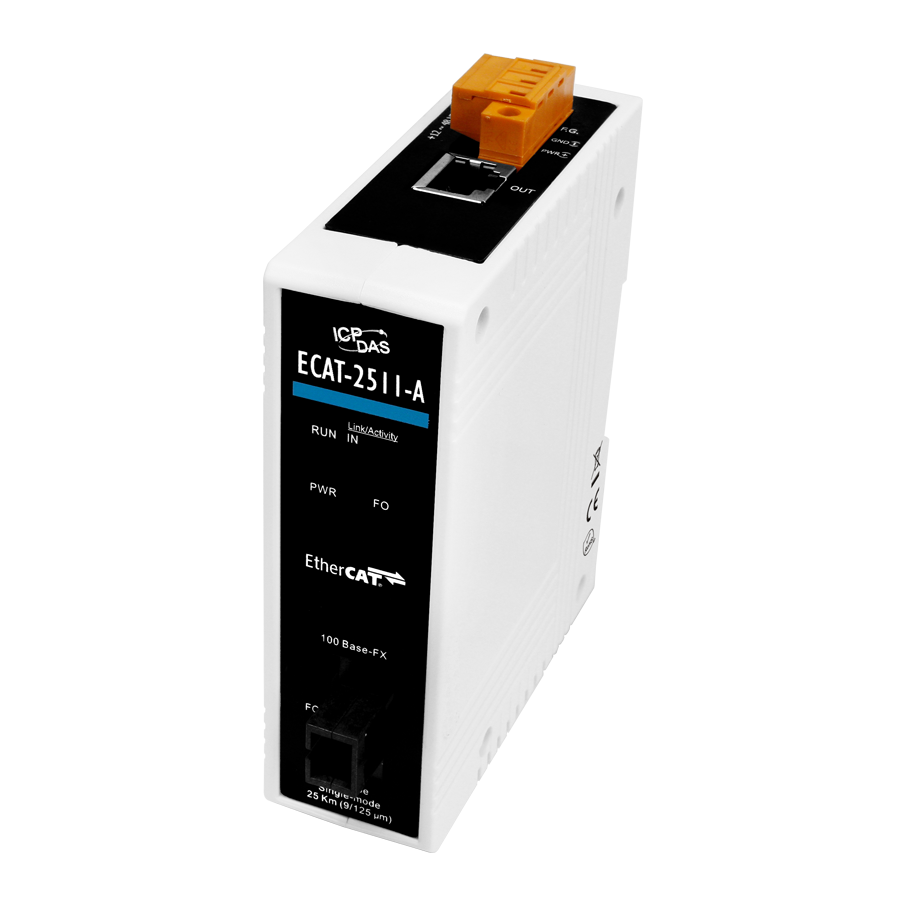

ICP DAS USA’s ECAT-2511-A EtherCAT to single-mode fiber optic converter.
The ECAT-2511-A is designed to convert EtherCAT signals to optical signals on a fiber optic cable and to reshape the EtherCAT signal to compensate for distortion, as well as isolate the bus error due to the wire short or disturbance. With the advantage of fiber optic, the ECAT-2511-A secure data transmission via fiber optic transmission, and helps the EtherCAT network to prevent the noise from EMS/RFI interference.
50% Cost Saving for Fiber Optic Infrastructures: With a pair of ECAT-2511 series products (ECAT-2511-A and ECAT-2511-B), you can double the utilization of your existing, costly fiber optic cable, and save 50% of the cost of a newly installed fiber optic application.
_app.png)
Communication Interface
RJ-45 Port
RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e)
Fiber Port
Single-Mode; SC connector x 1
Wavelength
TX: 1310, RX: 1550 nm
Distance between Stations
25 km (9/125 ?m recommended)
Power Input
Redundant Input Range
+12 ~ +48 VDC
Power Consumption
0.1 A @ 24 VDC
Protection
Power reverse polarity protection
Connector
3-Pin Removable Terminal Block (5.08mm)
Mechanical
Dimensions
110mm x 90mm x 33mm (H x W x D)
Installation
DIN-Rail
Environmental
Operating Temperature
-25°C ~ + 75°C
Storage Temperature
-30°C ~ + 80°C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing
