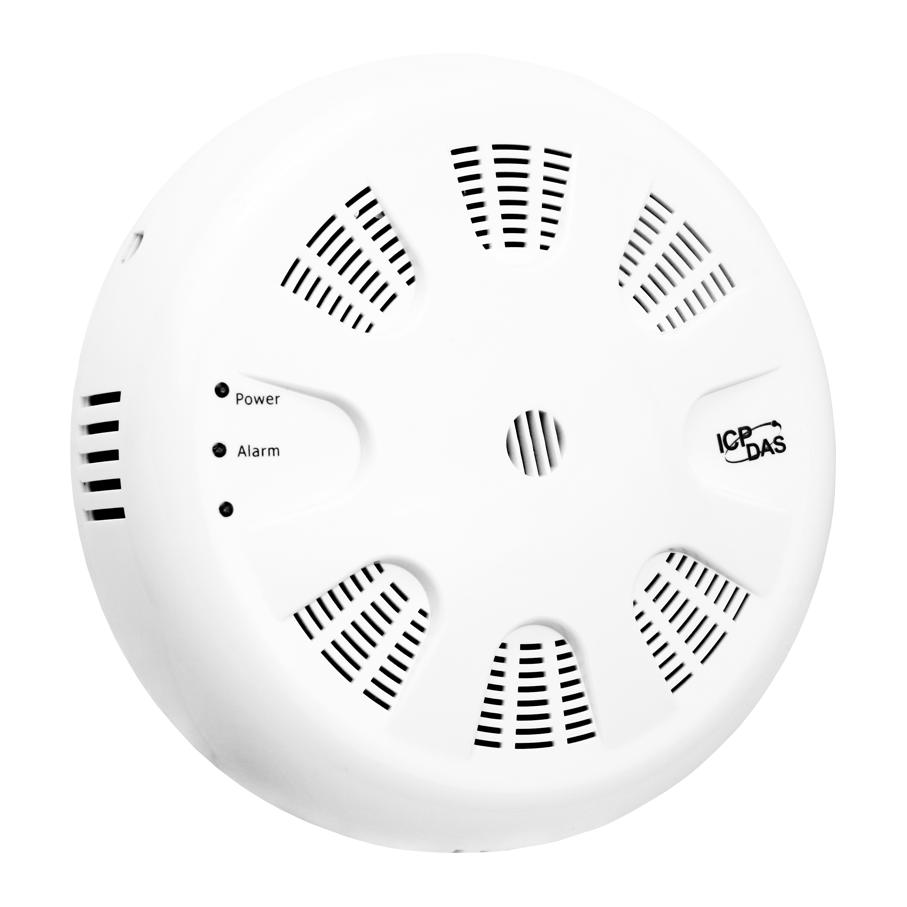

CL-207-E

• Able to record CO, CO2, HCHO, TVOC, Temperature, Humidity and Dew Point Measurements
• Non-dispersive Infrared (NDIR) CO2 Sensor
• HCHO : Electrochemical Sensor
• VCO : Metal-Oxide Sensor
• Up to 450,000 records with date and time stamps
• Supports the DCON, Modubs RTU/TCP, and MQTT Protocols
• Includes RS-485/Ethernet Communication Interfaces
• Relay Output for Alarm or IAQ Device Control

Introduction

The CL-200 series of data logger devices can be used to record HCHO, TVOC, CO, CO2, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.

Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the iSO App, or the Android App, as long as they are connected to the same local network as the data logger.

Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machineto-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.

Simple and Powerful Dl-300 Utility

The DL-300 Utility is a powerful tool that is designed for configuring the modules, monitoring real-time data, grouping DL-300 and CL-200 modules to view and manage the status of distribution groups, downloading log data, which can be exported to a CSV file that can then be imported into any industry-standard software or spreadsheet for analysis.

Applications

• Transportation of Food or Pharmaceuticals
• Food and Beverage Industry (HACCP)
• Blood Stations and Pharmacies
• Building and Energy Management
• Warehouse Management
• Museums, Archives, and Galleries

HCHO (Formaldehyde) Detector Automation Solution
The HCHO detector provides an instantaneous warning of the presence of toxic formaldehyde, which is commonly found in plywood factories, furniture factories, and newly remodelled homes.

Indoor or Underground Parking Lot Automatic Monitoring Solution
An air quality automation system for indoor or underground parking lots can use the Cl-200 series modules to monitor for health and safety indicators such as CO, CO2, temperature, humidity, dew point, and more..
