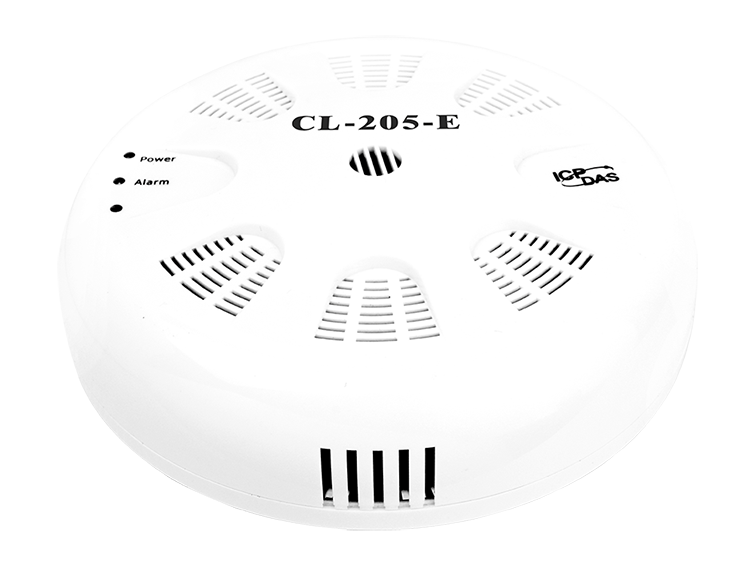

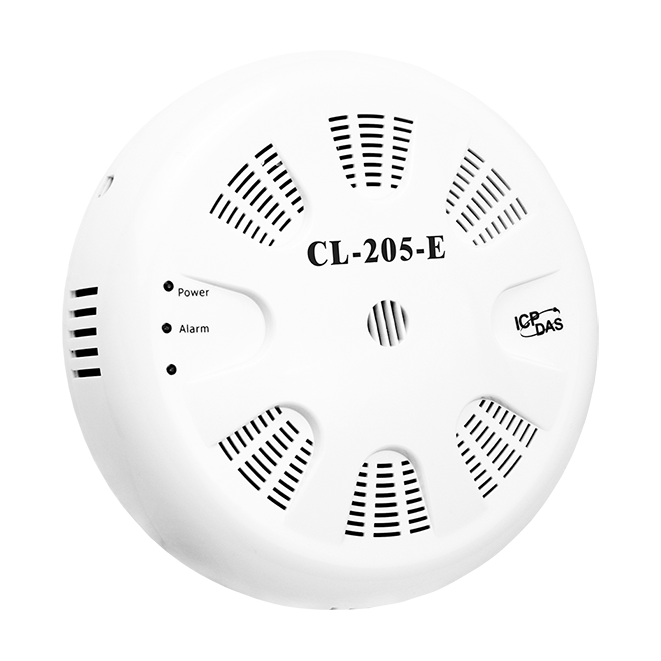

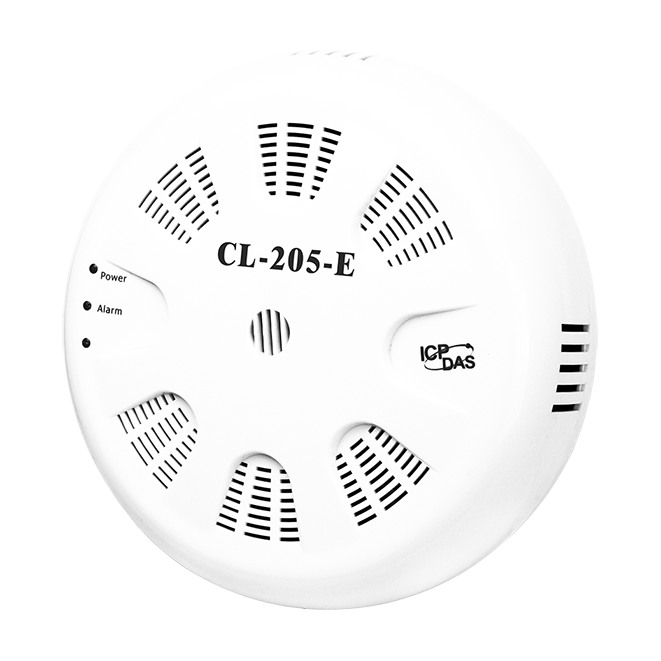

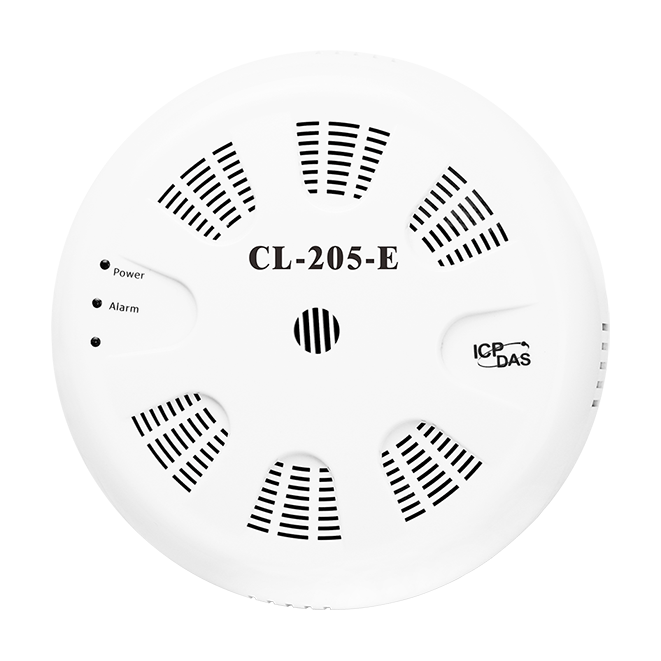

CL-205-E

• Able to record NH3, Temperature, Humidity and Dew Point Measurements
• Up to 450,000 records with date and time stamps
• Supports the DCON, Modbus RTU/TCP, and MQTT Protocols

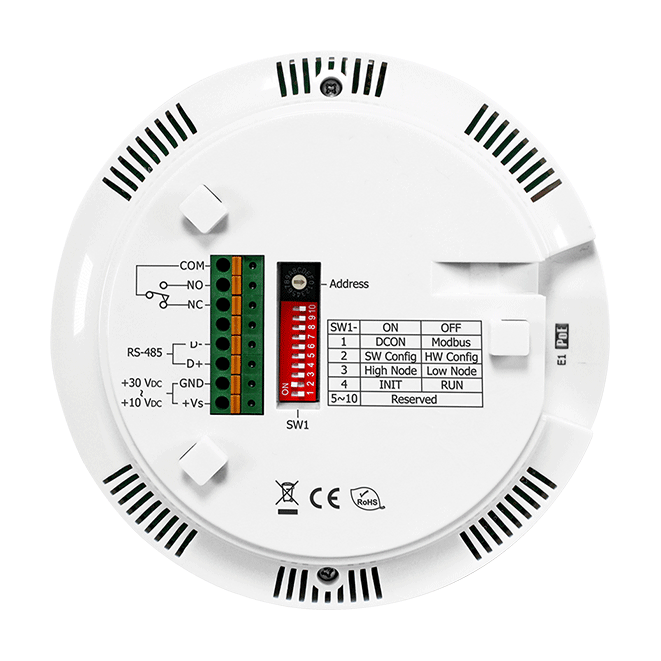

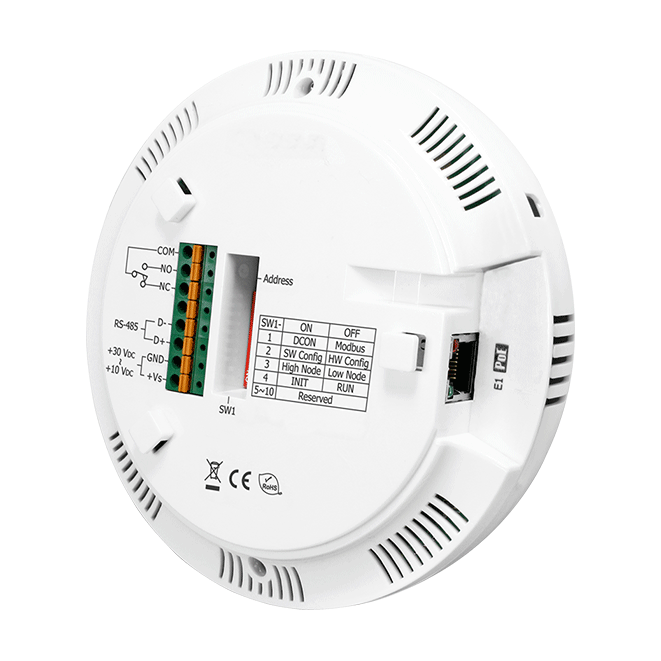

• Includes RS-485/Ethernet Communication Interfaces
• Relay Output for Alarm or IAQ Device Control

Introduction

The CL-200 series of data logger devices can be used to record CO, CO2, HCHO, TVOC, NH3, H2S, temperature, humidity and dew point information, including the date and time stamps, and are able to store up to 450,000 downloadable records.

Real-time data can be accessed from the CL-200 data logger from anywhere and at any time using the free Windows software, the iSO App, or the Android App, as long as they are connected to the same local network as the data logger.

Support is provided for common industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machineto-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200 data logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring trouble-free maintenance in distributed control systems.

Supports the MQTT Protocol for IoT Applications

Multi-platform Remote Access Software

Real-time data from the CL-200 data logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the data logger.

Simple and Powerful CL-200-E Utility

The DL300 Utility can be used to configure the modules, monitor real-time data, group CL-200-E modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Applications

• Transportation of Food or Pharmaceuticals
• Food and Beverage Industry (HACCP)
• Blood Stations and Pharmacies
• Building and Energy Management
• Warehouse Management
• Museums, Archives and Galleries

The air quality automation system for indoor or underground parking lot can use the CL-200 series modules to monitor the health and safity information, such as CO, CO2, temperature, humiditym, dew point, and more...

The HCHO/VOC detector provides an instantaneously warning of toxic formaldehyde, which can be found in a plywood factory, furniture factory and new interior remodelling house commonly.
