| Model | Input Current (Max) | Input Current (Min) | Inner Diameter | Accuracy | Input Frequency | Output Signal | Cable Length | CT Ratio (for PM-2133DP / PM-3133P / PM-4324(A)P Series) |
|---|---|---|---|---|---|---|---|---|

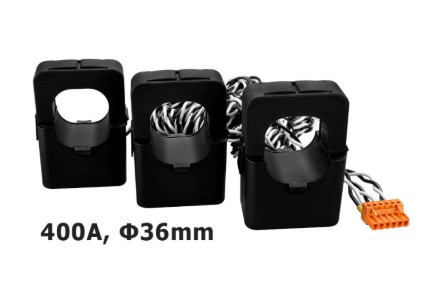

| CA-SCT36P-300A-L040-3P | 400A | 0.3A | 36 mm | 0.5% | 50/60 HZ | 333 mV | 4 M | 80:1 |
| PS: Compatible with PM-2133DP, PM-3133P and PM-4324(A)P series. Accuracy: ±2% ~ ±5% | ||||||||
| Input Current (Max) | 400A |
| Input Current (Min) | 0.3A |
| Inner Diamater | 36 mm |
| Accuracy | 0.5% |
| Input Frequency | 50/60 HZ |
| Output Signal | 333 mV |
| Cable Length | 4 M |
| CT Ratio | 80:1 |
