CA-SCSI20-M5

WIRE:
                 1. 28AWG, (7/0.127 TA),OD 0.38mm strand tinned copper.
         2. 10 TWISTED PAIRS.
                 2. FRPP insulation material, thickness 0.12mm , Insulation Diameter:0.6mm

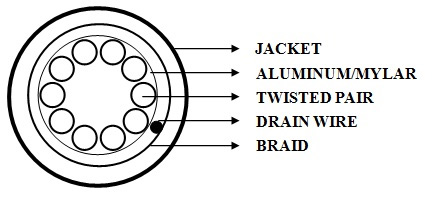

SHIELD:

                 1. MYLAR.
                 2. ALUMINUM-FOIL/MYLAR:OVERLAP 25% MIN. (AL side outside)
                 3. DRAIN WIRE: 24AWG (7/0.20 TA).
                 4. BRAID: 16/06/0.12 TA Coverage 85% MIN

JACKET:

                 1. MATERIAL: PVC
                 2. THICKNESS:0.9mm
                 3. OD: 6.0mm +/- 0.12

CHARACTER:

                 1. VOLTAGE RATING: 30V
                 2. TEMPERATURE RATING: 80℃
                 3. CONDUCTOR RESISTANCE: 237 Ω/KM MAX. at 20℃
                 4. INSULATION RESISTANCE:DC-500V 10 MΩ/KM MIN. at 20℃
                 5. SHIELD RESISTANCE: 8.5M OHM/M MIN. at 20℃
                 6. CAPACITANCE: at 20℃ and 1khz
                                         between any two conductor 16.5 pf/ft
                                  between each conductor to shield 50 pf/ft
                 7. FLAME-RETARDANT PROPERTIES: VERTICAL FLAM TEST VW-1


IMPEDANCE:  measured at frequency: 10mhz
                          nominal impedance: 100 ohm ±10 ohm
