BACnet (Building Automation and Control Network) is a communication protocol specifically designed for building automation and control systems. It was established by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) in 1995 and has been adopted by the International Organization for Standardization (ISO) as a standard (ISO 16484-5). BACnet aims to enable interoperability between devices from different manufacturers, particularly those involved in Building Management Systems (BMS), such as HVAC, lighting control, security systems, fire alarms, and more. BACnet supports various transmission media, including IP networks, RS-485, ARCNET, and MS/TP (Master-Slave/Token Passing), making it adaptable to different installation environments. Its ability to integrate and manage multiple devices in automation systems has made it one of the most widely used communication protocols in modern smart buildings.

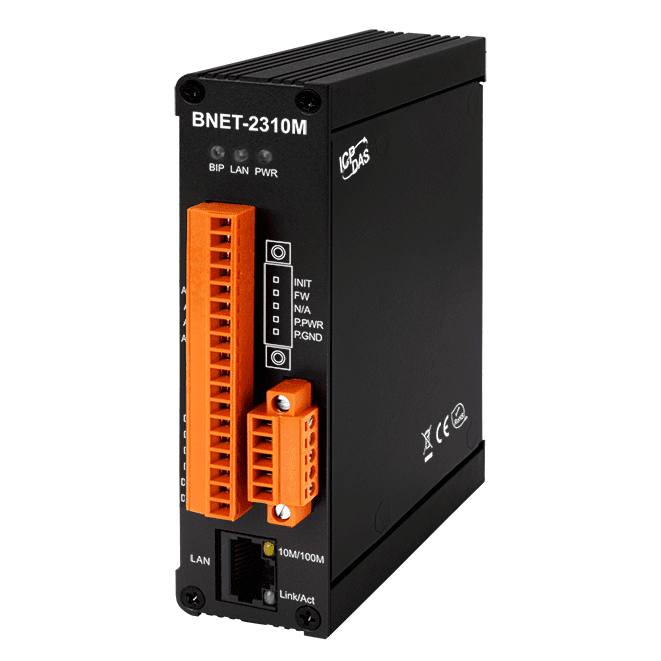

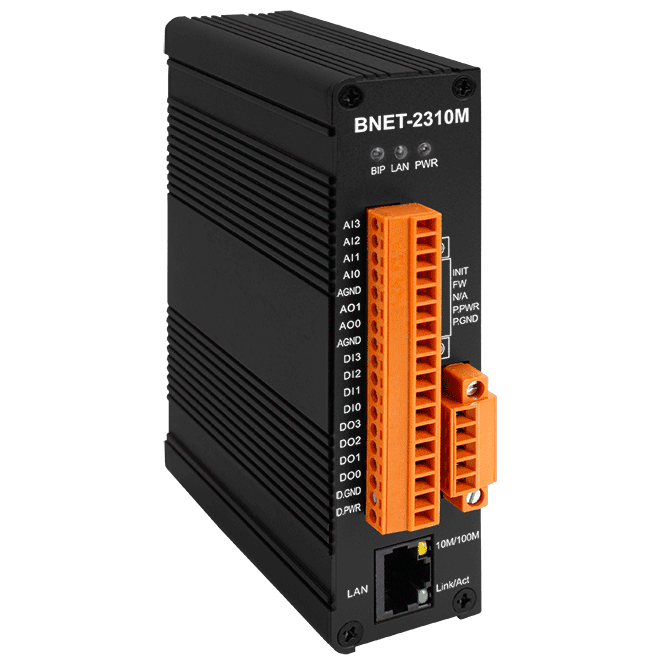

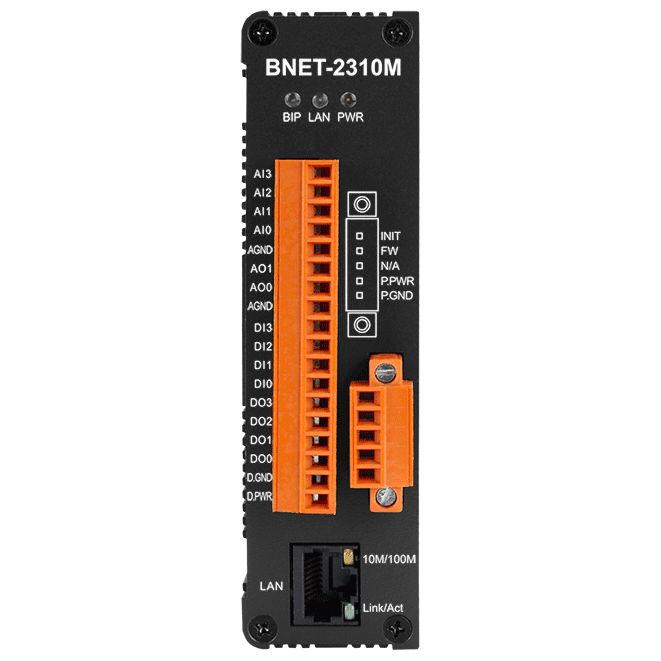

| CPU Module | |
|---|---|
| Watchdog Timer | Yes |
| System | |
|---|---|
| Security | ID and Password |
| LED Indicators | |
|---|---|
| Status | Power, Ethernet and BIP status |
| Analog Input | |
|---|---|
| Channels | 4 Single-ended |
| Range | ±1 V , ±2.5 V, ±5 V, ±10 V |
| Resolution | 16-bit |
| Sampling Rate | 10Hz(Total channels) |
| Overvoltage Protection | +120 VDC |
| Individual Channel Configuration | Yes |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V |
| Resolution | 12-bit |
| Individual Channel Configuration | Yes |
| Digital Input | |
|---|---|
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source(PNP) |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | +60 VDC |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source(PNP) |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | Yes |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| BACnet/IP | |
|---|---|
| Protocol | BACnet/IP Server |
| Objects | 1 Device, 4 AI, 2 AO, 4 BI, 4 BO |
| BIBBs | DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power | |
|---|---|
| Input Range | +10VDC to +30VDC |
| Consumption | 3.6W (0.15A @24VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 106 (W x L x D) |

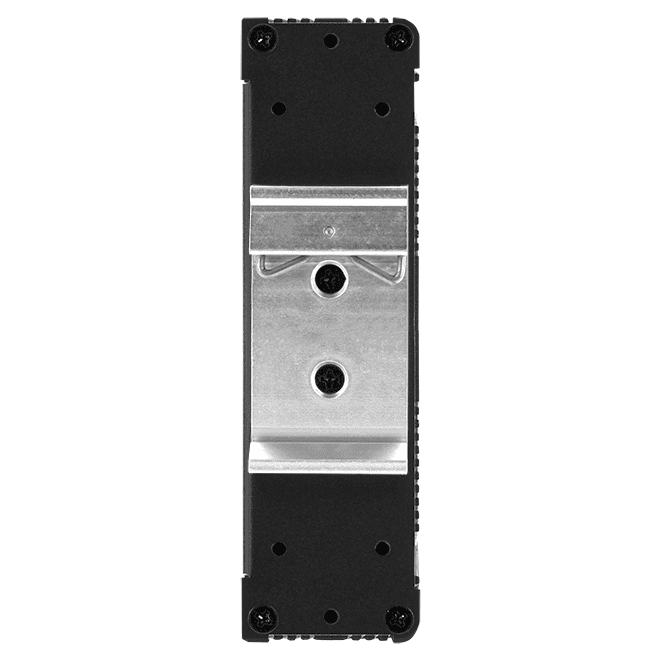

| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
