| Share On: | |
|---|---|
| Categories: | Industrial Antennas | Antennas |
| Review: | Write your review |
| Resources: |
| Frequency | 2.4 ~ 2.5 GHz |
| Polarization | Linear |

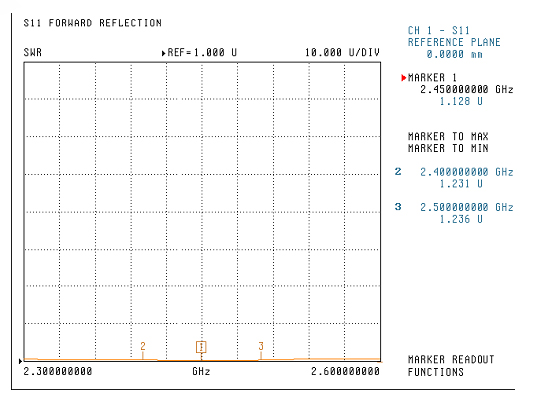

| V.S.W.R. | 1 : 1.3 (Max.) |
| Impedance | 50 Ohms ±5Ω |
| Gain | 8 dBi |
| Power handling | 15W (Max.) |
| Front to back ratio | N/A |
| HPBW / horizontal | 360° |
| HPBW / vertical | 10° |
| Rated Wind | 3.0 lbs. (1.4 kg) |
| Operating Temperature | -20°C ~ 60°C |
| Connector Type | SMA Male |
| Cable | RG-58, 100 cm |
| Mounting Guide (JPG format 747 KB) | |
| Length | φ35 x 420mm |
| Weight | 430 g |
| Radome color | white |
| Radome material | glass fiber |
Applications:
 Usage Diagram |
|
 SST-2450 with ANT-8 |
.jpg)
Gain Pattern:
 E-Plane Field Patterns |
|
 H-Plane Field Patterns |
