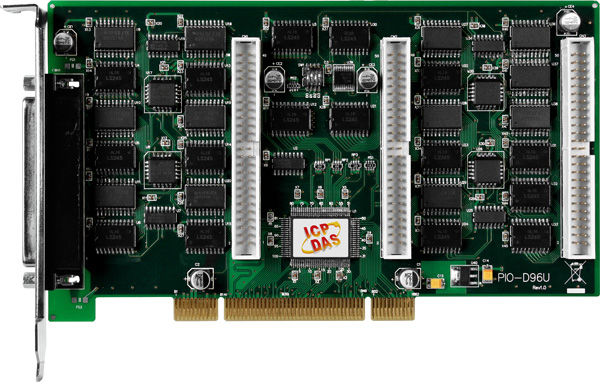

The PIO-D96U card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PIO-D96U card is designed as a drop-in replacement for the PIO-D96, and users can replace the PIO-D96 by the PIO-D96U directly without software/driver modification.
The PIO-D96U universal PCI card supports 3.3 V/5 V PCI bus while the PIO-D96 supports 5 V PCI bus. These cards provide 96 TTL digital I/O lines that consist of twelve 8-bit bi-direction ports. Every three ports on a connector are grouped and named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.
The PIO-D96U also adds a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more PIO-D96U cards in one computer.
The PIO-D96/D96U supports various OS such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/2003/Vista/7. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.
| Programmable Digital I/O | |
| Channels | 96 |
| Digital Input | |
| Compatibility | 5 V/TTL |
| Input Voltage | Logic 0: 0.8 V max. Logic 1: 2.0 V min. |
| Response Speed | 1.2 MHz (Typical) |
| Digital Output | |
| Compatibility | 5 V/TTL |
| Output Voltage | Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Output Capability | Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V |
| Response Speed | 1.2 MHz (Typical) |
| General | |
| Bus Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Card ID | Yes(4-bit) |
| I/O Connector | Female DB37 x 1 50-pin box header x 3 |
| Dimensions (L x W x D) | 180 mm x 105 mm x 22mm |
| Power Consumption | 600 mA @ +5 V |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
| Humidity | 5 ~ 85% RH, non-condensing |
