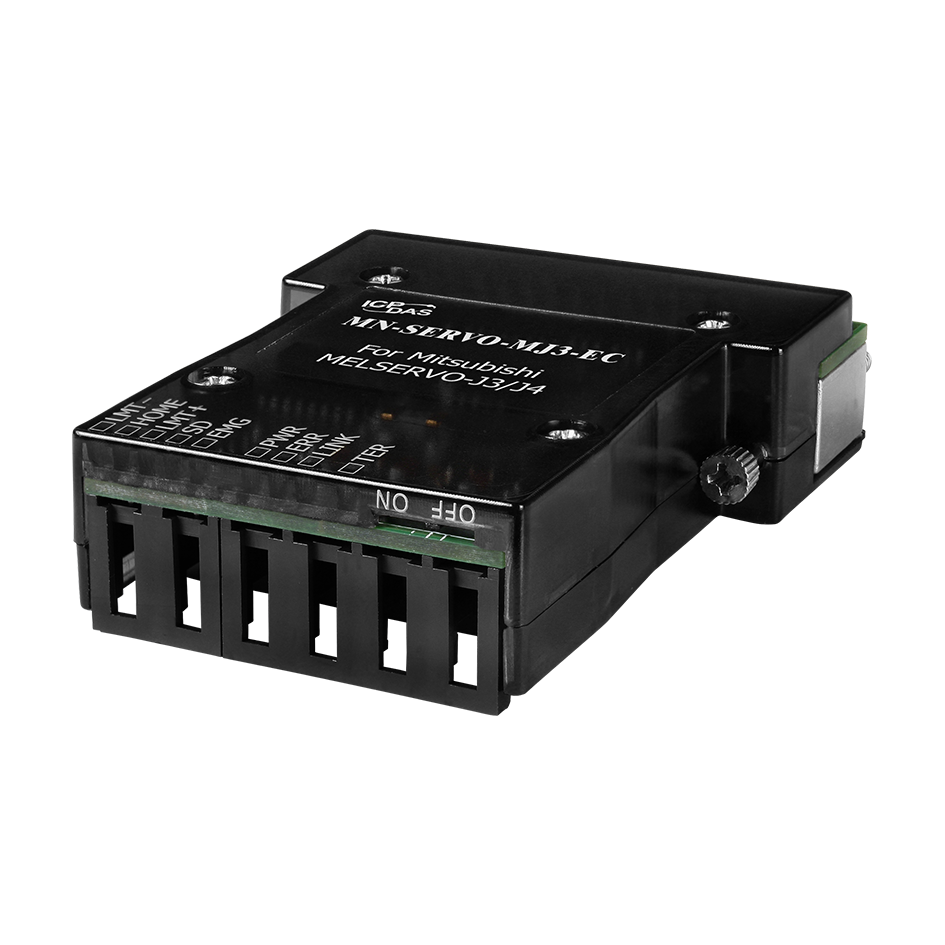

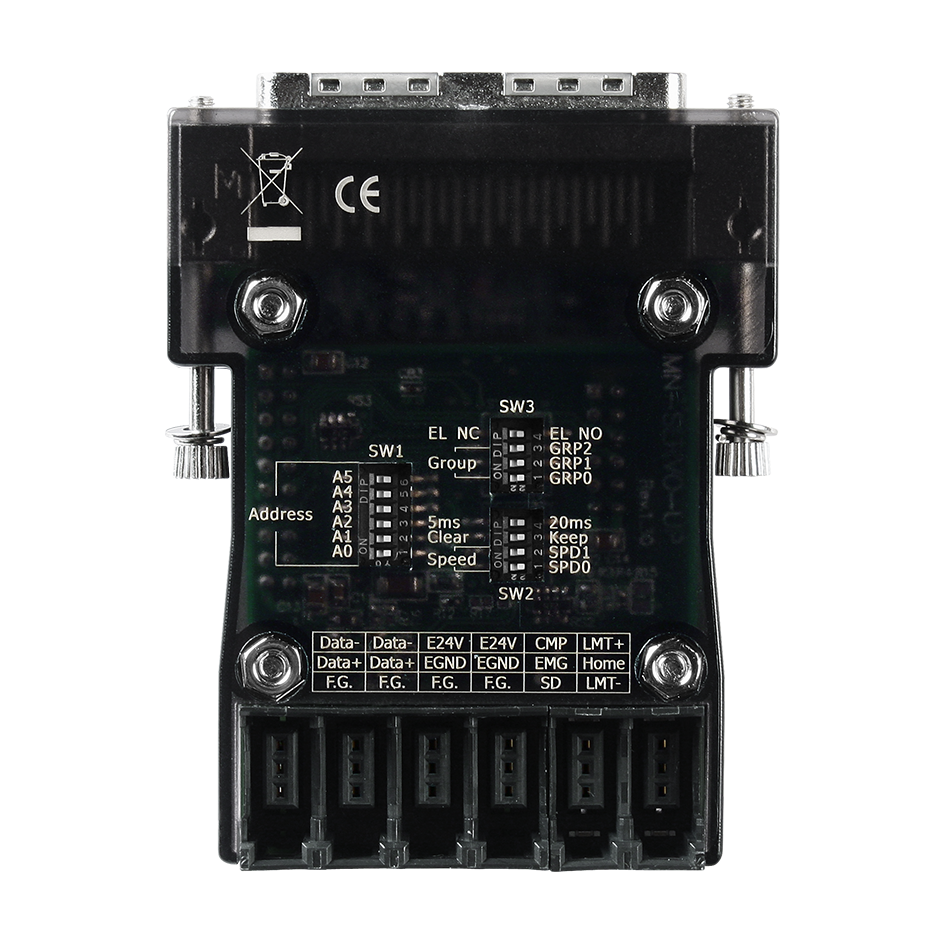

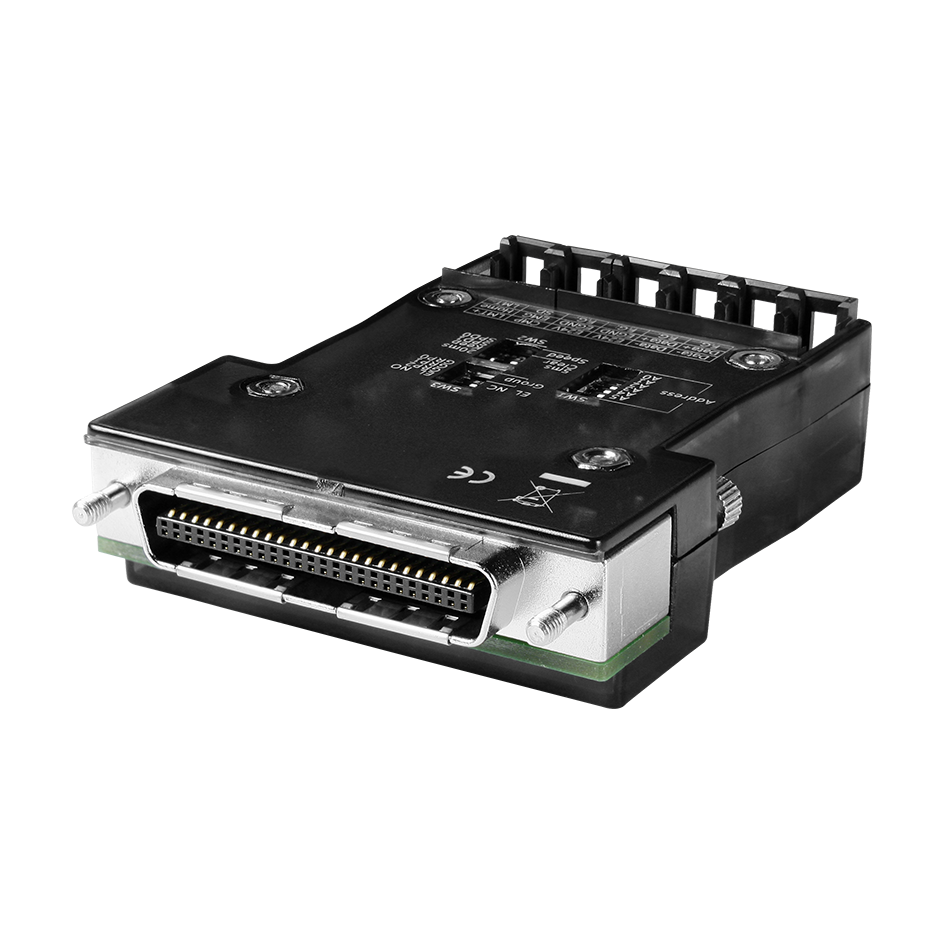

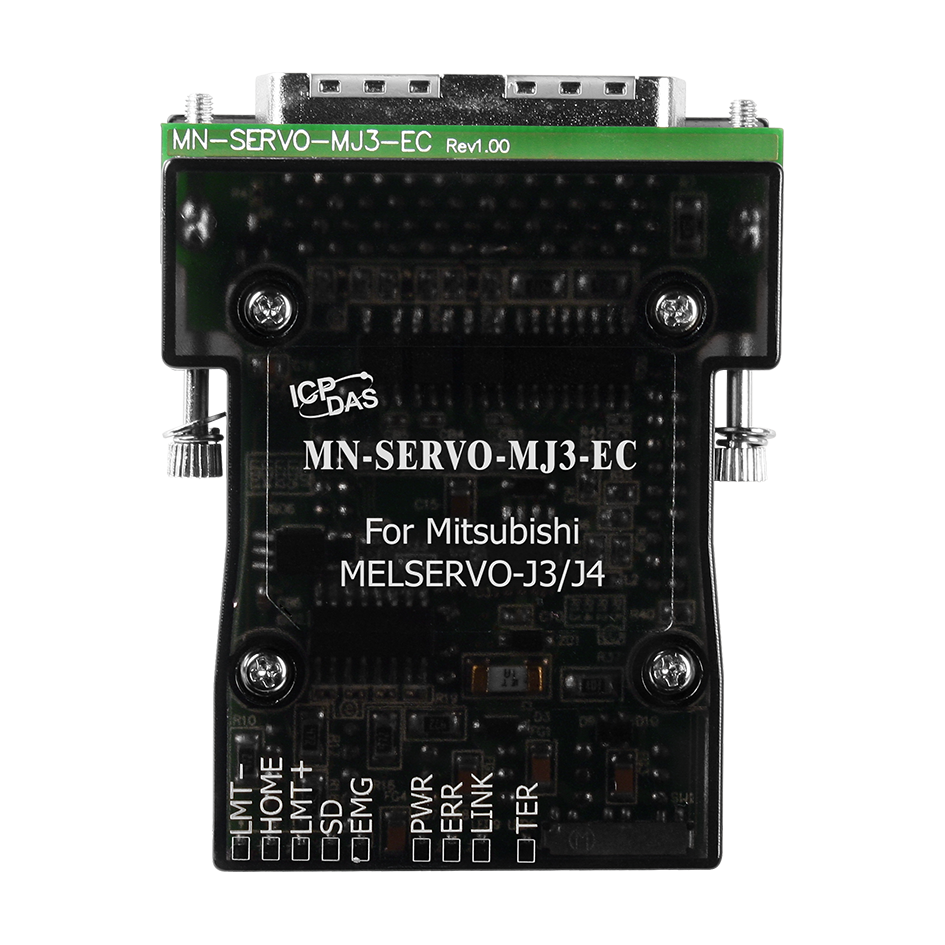

MN-SERVO-MJ3-EC

The MN-SERVO-xxx-EC series is used to expand the number of axes for distributed motion control on a Motionnet field bus. These extension slave modules can be directly connect to the servo driver and are serially connected to the controller using a simple and affordable Cat.5 LAN cable, reducing the amount of wiring required between the drivers and the controller, making this a highly suitable solution for integrated machine automation applications.

After the module is connected to the servo driver, all you need to do is connect a serial LAN cable between the modules. One serial line can support up to 64 single-axis modules. ICP DAS provides a variety of motion control modules suitable for a range of brands of servo drivers, such as Mitsubishi MELSERVO-J3/J4, Yaskawa Sigma II/III/V, Panasonic MINAS A4/A5, Delta ASDA-A/A2 and Teco TSTA-A/A+.

• Maximum communication speed: 20 Mbps
• Maximum pulse output frequency: 6.6 Mpps
• Control up to 64 axes / line
• Multi-axes linear interpolation function
• 2-axes circular interpolation function
• Programmable T/S-curve acceleration and deceleration
• Change speed and position on the fly
• Slow down sensor, Home sensor, positive and negative limit sensors for each axis
• Software limit and compare trigger output
• Three-way isolation for power, communication and I/O. (Provide better noise immunity and device protection)
• The -EC module equipped with Mini-Clamp connector provide for an easier and debris-free wire termination process.
